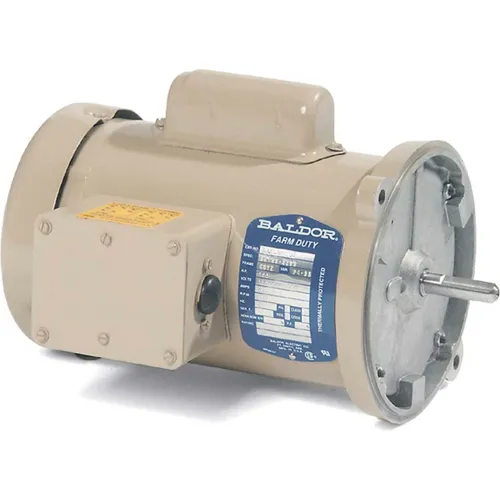

Baldor-Reliance Electric Motors ANFL3510M, 1HP, 1725RPM, 1PH, 60HZ, 56YZ, 3524L, TEFC, F1

Baldor-Reliance Motor, ... Features: Lubrication fittings on Nema T frames for eazy on-site maintenance Ball bearings Corrosion protected with epoxy finish Normally-closed thermostats on three phase motors Typical Applications: Designed for powering aeration fans used on farm grain storage, exhaust fans, air handling systems, etc.

Our complete line of single-phase Farm Duty / Agricultural Duty Series of motors are designed and built for the tough applications found in the agricultural industry. Mechanical Features Gasketed capacitor housing and conduit boxes provide protection in all environments. Double sealed ball bearings are prelubricated with Exxon POLYREX® EM grease having operating temperature range of -20°F to+350°F. Rubber boot over manual protector reset button provides weather protection. Electrical Features Low temperature manual overload protector protects against extreme overload. Class "F" ...

Baldor-Reliance Motor, .5HP,1725RPM,3PH,60HZ,56C,3513M,TEFC,F3 Features: UL/CSA recognized and CE certified CEUHM/VEUHM motors are Super-E® with NEMA Premium® efficiency CUHM/VUHM motors are EPAct efficiency and all are inverter-ready 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors 56-140 frames have low profile F3 top-mounted conduit box 3 year warranty on Super-E® motors Typical Applications: Unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Baldor-Reliance Motor, ... Features: Moisture sealant on bolt heads, between frame and endplates Neoprene gaskets Double sealed bearings Forsheda® running contact v-ring slinger Stainless steel shaft Electrostatically applied epoxy finish Class F insulation Tropicalized Typical Applications: Food processing and other applications where motor is regularly exposed to high pressure wash down.

Agricultural Motor: 1HP, 1725RPM, 56 Frame, Totally-Enclosed, Fan-Cooled (TEFC), 115/208-230V, 1PH, Continuous duty, Manual thermal protection, 1.15 Service Factor, Rigid Mount. Heavy duty single phase Hi-Torque Motor is designed specifically for severe Farm duty applications. Mechanical Features: Gasketed capacitor housing and conduit boxes provide protection in all environments. Double sealed ball bearings prelubricated with Exxon POLYREX® EM grease having operating temperature range of -20°F to +350°F and special formulation to provide extra bearing protection. Rubber boot ...
