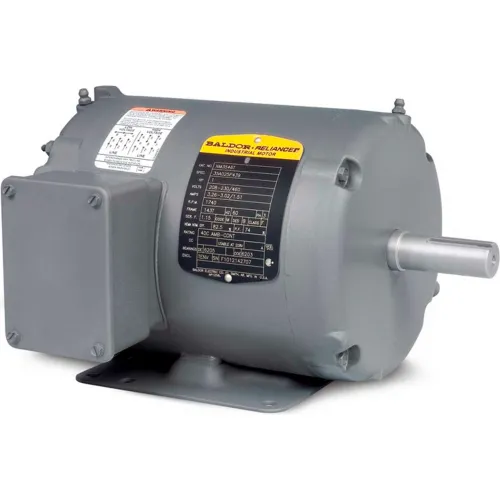

Baldor-Reliance Motor AOM3539, .5HP, 1140RPM, 3PH, 60HZ, 56, 3418M, TEAO, F1, N

Baldor-Reliance Motor AOM3539, .5HP, 1140RPM, 3PH, 60HZ, 56, 3418M, TEAO, F1, N

Item #: WBB388752

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$988.00 up to 39% OFF

Price: $603.00

$100.50/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor AOM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145T, 3520M, TEAO, F1

Baldor-Reliance Motor AOM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145T, 3520M, TEAO, F1

Baldor-Reliance Motor RM3112A, .75HP, 1725RPM, 3PH, 60HZ, 56H, 3420M, OPEN, F1

Baldor-Reliance Motor RM3112A, .75HP, 1725RPM, 3PH, 60HZ, 56H, 3420M, OPEN, F1

Baldor-Reliance Motor AOM3458, .33 AIR OVERHP, 1725RPM, 3PH, 60HZ, 48, 3410M

Baldor-Reliance Motor AOM3458, .33 AIR OVERHP, 1725RPM, 3PH, 60HZ, 48, 3410M

Baldor-Reliance HVAC Motor, EM2515T-G, 3 PH, 20 HP, 230/460 V, 1765 RPM, OPSB, 256T Frame

Baldor-Reliance HVAC Motor, EM2515T-G, 3 PH, 20 HP, 230/460 V, 1765 RPM, OPSB, 256T Frame

Baldor-Reliance HVAC Motor, EM3558T-G, 3 PH, 2 HP, 208-230/460 V, 1755 RPM, TEFC, 145T Frame

Baldor-Reliance HVAC Motor, EM3558T-G, 3 PH, 2 HP, 208-230/460 V, 1755 RPM, TEFC, 145T Frame

Baldor-Reliance Motor EHM3311T, 7.5HP, 1770RPM, 3PH, 60HZ, 213T, 3733M, OPSB, F

Baldor-Reliance Motor EHM3311T, 7.5HP, 1770RPM, 3PH, 60HZ, 213T, 3733M, OPSB, F

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Century H655V1, Fan and Blower Motor Three Phase 200-230 Volts 1725/1140RPM 1/2~22 HP

Century H655V1, Fan and Blower Motor Three Phase 200-230 Volts 1725/1140RPM 1/2~22 HP

Century F268, Split Phase Resilient Base Motor 100-115/200-230 Volts 1800 RPM 1/2 HP

Century F268, Split Phase Resilient Base Motor 100-115/200-230 Volts 1800 RPM 1/2 HP

Baldor-Reliance Motor, .5HP,1140RPM,3PH,60HZ,56,3418M,TEAO,F1,N

Features:
  • Locked drive end bearing construction
  • Bearings sized for larger overhung loads for fan on shaft applications
  • Leads 36
Typical Applications:
Motors are designed for In the Airstream and fan on shaft applications.

Weights & Dimensions

  • Width 11.125 in
  • Shaft Length 0.625 in
  • Length 10.88 in
  • Height 11.125 in
  • Drive End Bearing Size 6203
  • Shaft Diameter 0.625 in
  • Frame Size 56
  • Opposite End Bearing Size 6203
  • Length Less Shaft 14 in
  • Weight 24 lbs

Product Details

  • Service Factor 1
  • Enclosure Type Totally Enclosed
  • Horsepower 1/2 HP
  • Is_Motor Yes
  • Duty Continuous
  • Phase 3
  • Enclosure TEAO
  • Full Load Efficiency 72
  • Brand Baldor-Reliance
  • Bearing Type Ball
  • Full Load Amps 2.5-2.4/1.2 FLA
  • Design Code B
  • Motor RPM 60 Hertz 1140 rpm
  • Thermal Protection None
  • Hertz 60 Hz
  • Manufacturers Part Number AOM3539
  • Mounting Location Rigid
  • Number of Speeds 1
  • Rotation CCW/CW °
  • Poles 6
  • Ambient Temperature 40 °C
  • Drive End Flange Standard
  • Insulation Class F
  • RPM Range 1101-1200 rpm
  • Voltage 208-230/460 V
  • Frame 56
  • Rated RPM 1140

Compliance & Certifications

  • Certifications CSA; UR
