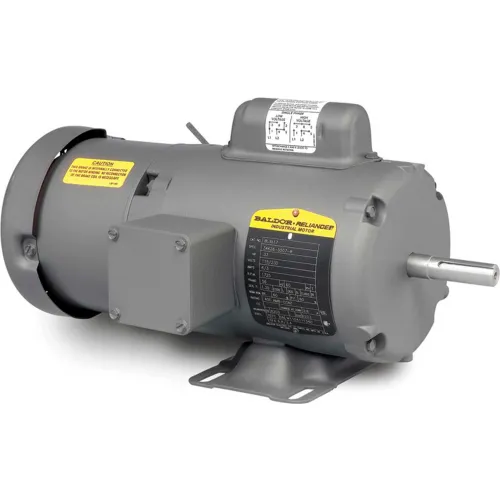

Baldor-Reliance Motor BL3518, .5HP, 1725RPM, 1PH, 60HZ, 56, 3421L, TEFC, F1, B

Baldor-Reliance Motor, 7.50HP,3520RPM,3PH,60HZ,213TC,TEFC,FOOT Features: Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines Inpro Seal® on fan and drive end shaft extensions 2-part yellow epoxy oxide primer (inside & outside) Gray epoxy paint and corrosion resistant hardware Reduced noise, vibration and mechanical tolerances Final test and vibration results shipped with motor Typical ...

Baldor-Reliance Motor, ... Features: 1.0 service factor 40°C ambient Automatic thermal overload Ball bearing Class B insulation Extended thru-bolts on 5.13 inch bolt circle for mounting fan shroud Heavy gage steel yoke with 180° slot for wide angle rotation Permanent split capacitor Pull chain switch (2spd only) for high and low speed Reversible rotation Shaft slinger Terminal panel with quick connections Typical Applications: Designed for air circulation

Baldor-Reliance Motor, 100HP,3565RPM,3PH,60HZ,405TS,TEFC,FOOT, Features: Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines Inpro Seal® on fan and drive end shaft extensions 2-part yellow epoxy oxide primer (inside & outside) Gray epoxy paint and corrosion resistant hardware Reduced noise, vibration and mechanical tolerances Final test and vibration results shipped with motor Typical ...

Baldor-Reliance Motor, ... Features: 1.15 Service Factor Corrosion resistant epoxy finish Regreasable ball or roller bearings Oversized rotatable cast iron conduit box Cast iron frames Forsheda® shaft seal Moisture resistant copper windings Class F insulation Tropicalization Stainless steel nameplate and corrosion resistant hardware 3 year warranty Typical Applications: Petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by ...

Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants. Features 1.15 Service Factor Corrosion resistant epoxy finish Regreasable ball bearings Oversized rotatable cast iron conduit box Forsheda® shaft seal Moisture resistant copper windings ...
