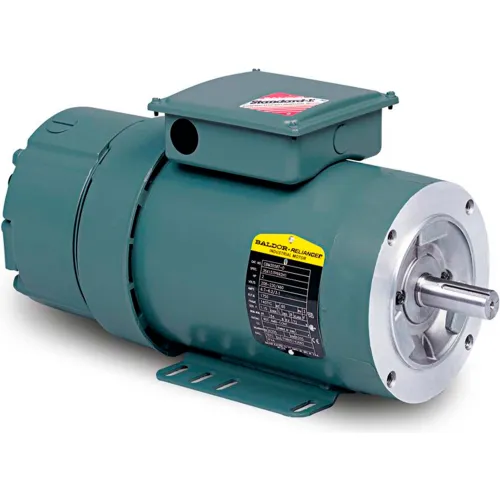

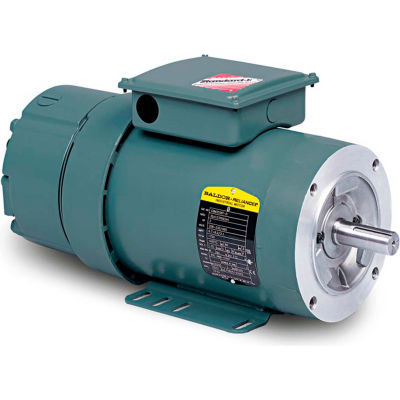

Baldor-Reliance Motor BNM3542-D, .75HP, 1750RPM, 3PH, 60HZ, 56, 3514M, TENV, F3

Baldor-Reliance Motor BNM3542-D, .75HP, 1750RPM, 3PH, 60HZ, 56, 3514M, TENV, F3

Item #: WBB388873

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$2,136.00 up to 39% OFF

Price: $1,302.00

$217.00/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Unit Handling Motor, VEUHM3546, 3 PH, 1 HP, 208-230/460 V, 1760 RPM, TEFC, 56C Frame

Baldor-Reliance Unit Handling Motor, VEUHM3546, 3 PH, 1 HP, 208-230/460 V, 1760 RPM, TEFC, 56C Frame

Baldor-Reliance Motor VEUHM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145TC, 3532M, TEFC, F3

Baldor-Reliance Motor VEUHM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145TC, 3532M, TEFC, F3

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, .75HP,1750RPM,3PH,60HZ,56,3514M,TENV,F3

Features:
  • UL/CSA recognized and CE certified
  • Dodge "D" Series brakes are spring set
  • Brakes are single phase with built-in rectifier to DC
  • Brakes have a manual release lever
  • 56-140 frames have low profile F3 top-mounted conduit box
  • D series brake motors can be universally mounted
  • Inverter ready
  • 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
  • 2 year warranty
Typical Applications:
Unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Weights & Dimensions

  • Dimension C 14.96 in
  • Opposite End Bearing Size 6203
  • Weight 46

Product Details

  • Power Factor 66
  • Mounting Location Rigid
  • Bearing Drive End 6205
  • Brake Rating 6
  • RPM 1750 rpm
  • Poles 4
  • Drive End Flange Standard
  • Ambient Temperature 40 °C
  • KVA Code M
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • Voltage 208-230/460 V
  • Frame 56
  • Service Factor 1.15
  • Horsepower 3/4 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Phase 3
  • Enclosure TENV
  • Full Load Efficiency 78.5
  • Brand Baldor-Reliance
  • Full Load Amps 3-2.8/1.4 FLA
  • Design Code B
  • Motor RPM 60 Hertz 1750 rpm
  • Hertz 60 Hz

Compliance & Certifications

  • Specification Number 35X056P672G1
