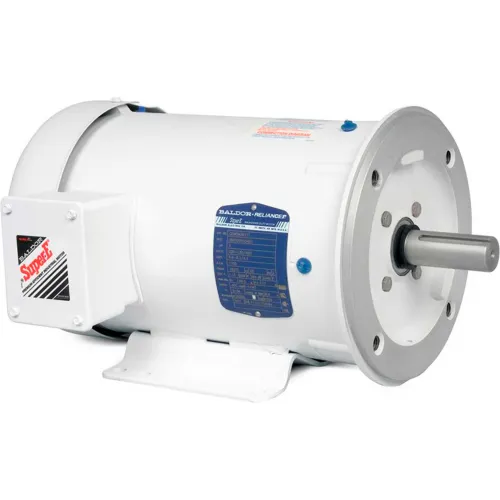

Baldor-Reliance Motor CEWDM3558T-5, 2HP, 1725RPM, 3PH, 60HZ, 145TC, 3532M, TEFC, F1

Actual product may differ from image shown

Baldor-Reliance Motor CEWDM3558T-5, 2HP, 1725RPM, 3PH, 60HZ, 145TC, 3532M, TEFC, F1

Item #: WBB388736

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$2,024.00 up to 39% OFF

Price: $1,234.00

$205.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor VEWDM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145TC, 3532M, TEFC, F1

Baldor-Reliance Motor VEWDM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145TC, 3532M, TEFC, F1

Baldor-Reliance Motor CWDM3538, .5HP, 1725RPM, 3PH, 60HZ, 56C, 3516M, TENV, F1

Baldor-Reliance Motor CWDM3538, .5HP, 1725RPM, 3PH, 60HZ, 56C, 3516M, TENV, F1

Leeson Motors Motor Washdown Motor-1/2HP, 208-230/460V, 1725/1425RPM, TEFC, ROUND, 1.15 SF, 74 Eff.

Leeson Motors Motor Washdown Motor-1/2HP, 208-230/460V, 1725/1425RPM, TEFC, ROUND, 1.15 SF, 74 Eff.

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, 2HP,1725RPM,3PH,60HZ,145TC,3532M,TEFC,F1

Features:
  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
Typical Applications:
Food processing and other applications where motor is regularly exposed to high pressure wash down.

Weights & Dimensions

  • Dimension C 14.16 in
  • Weight 50 lbs

Product Details

  • RPM Range 1701-1800 rpm
  • Mounting Location Rigid
  • Voltage 575 V
  • Bearing Opp Drive End 6203
  • Frame 145TC
  • Service Factor 1.15
  • Horsepower 2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • RPM 1725 rpm
  • Phase 3
  • Enclosure TEFC
  • Brand Baldor-Reliance
  • Full Load Amps 2.3 FLA
  • Motor RPM 60 Hertz 1725 rpm
  • Poles 4
  • Hertz 60 Hz
  • Manufacturers Part Number CEWDM3558T-5
  • Drive End Flange C-Face
  • Ambient Temperature 40 °C
