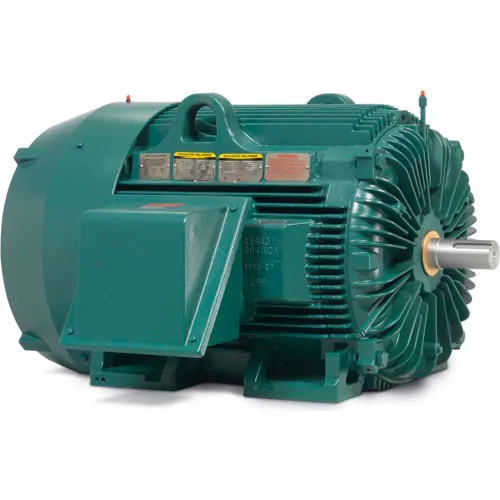

Baldor-Reliance Motor, 250HP,1785RPM,3PH,60HZ,449T,TEFC
Features:
Typical applications include petro-chemical, pulp and paper plants, mines and other installations requiring premium efficient motors manufactured and tested to rigid standards for severe duty service.
Features:
- Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors
- Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines
- Inpro Seal® on fan and drive end shaft extensions
- 2-part yellow epoxy oxide primer (inside & outside)
- Gray epoxy paint and corrosion resistant hardware
- Reduced noise, vibration and mechanical tolerances
- Final test and vibration results shipped with motor
Typical applications include petro-chemical, pulp and paper plants, mines and other installations requiring premium efficient motors manufactured and tested to rigid standards for severe duty service.
Weights & Dimensions
- Dimension C 53.24 in
- Weight 2959 lbs
Product Details
- RPM Range 1701-1800 rpm
- Voltage 460 V
- Frame 449T
- Service Factor 1.15
- Horsepower 250 HP
- Class Insulation F
- Enclosure Type Totally Enclosed
- Is_Motor yes
- RPM 1785 rpm
- Enclosure TEFC
- Phase 3
- Full Load Efficiency 96.2
- Brand Baldor-Reliance
- Full Load Amps 276 FLA
- Hertz 60 Hz
- Manufacturers Part Number ECP84408T-4
