Baldor-Reliance

Model # :WBB390386

MPN #: EJPM4107T

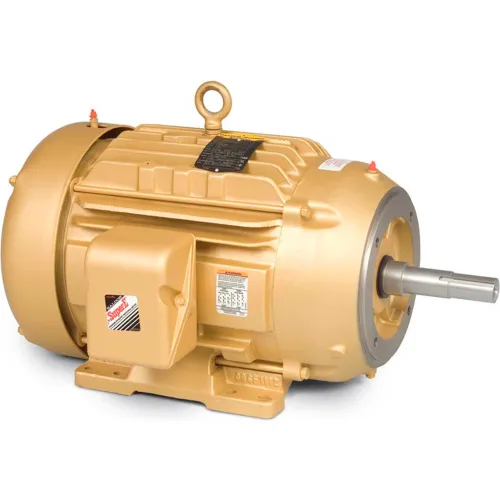

Baldor-Reliance Motor EJPM4107T, 25HP, 3520RPM, 3PH, 60HZ, 284JP, 0938M, TEFC, F

Product Description
Baldor-Reliance Motor, 25HP,3520RPM,3PH,60HZ,284JP,0938M,TEFC,F

Features:
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
Typical Applications:
Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

PRICE
$5,579.00

1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Weight286 lbs
Dimension C29-13/16 in

Product Details

Power Factor88
Bearing Opp Drive End6208
Drive End FlangeC-Face
KVA CodeJ
Motor RPM 60 Hertz3525 rpm
Mounting LocationRigid
Phase3
GreasePOLYREX EM
Manufacturers Part NumberEJPM4107T
EnclosureTEFC
Service Factor1.15
Bearing Drive End6312
BrandBaldor-Reliance
RPM3,525 rpm
Insulation ClassF
Horsepower25 HP
Frame284JP
Hertz60 Hz
Design CodeB
Enclosure TypeTotally Enclosed
Voltage230, 460 V
Full Load Efficiency91.7
Full Load Amps58/29 FLA
Poles2
Ambient Temperature40 °C
RPM Range3001-3600 rpm
