Baldor-Reliance

Model # :WBB390387

MPN #: EJPM4108T

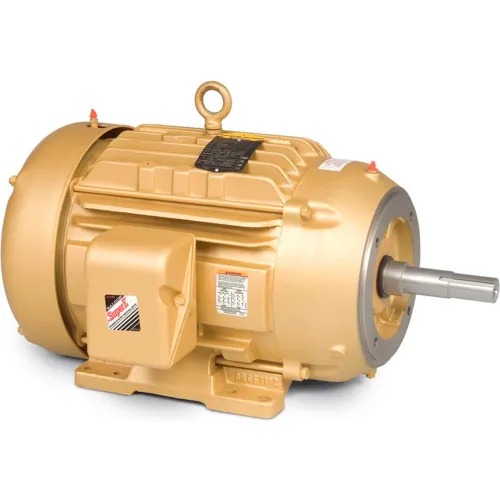

Baldor-Reliance Motor EJPM4108T, 30HP, 3520RPM, 3PH, 60HZ, 286JP, 1038M, TEFC, F

Product Description
Baldor-Reliance Motor, 30HP,3520RPM,3PH,60HZ,286JP,1038M,TEFC,F

Features:
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
Typical Applications:
Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

PRICE
$7,649.00

1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Weight435 lbs
Dimension C31-1/2 in

Product Details

Power Factor87
Bearing Opp Drive End6309
Drive End FlangeC-Face
KVA CodeG
Motor RPM 60 Hertz3520 rpm
Mounting LocationRigid
Phase3
GreasePOLYREX EM
Manufacturers Part NumberEJPM4108T
EnclosureTEFC
Service Factor1.15
Bearing Drive End6312
BrandBaldor-Reliance
RPM3,520 rpm
Insulation ClassF
Horsepower30 HP
Frame286JP
Hertz60 Hz
Design CodeB
Enclosure TypeTotally Enclosed
Voltage208 - 230, 460 V
Full Load Efficiency91.7
Full Load Amps76-70/35 FLA
Poles2
Ambient Temperature40 °C
RPM Range3001-3600 rpm
