Features:
- Ball bearings
- Suitable for mounting any position
- Heavy gauge steel and cast iron frames
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

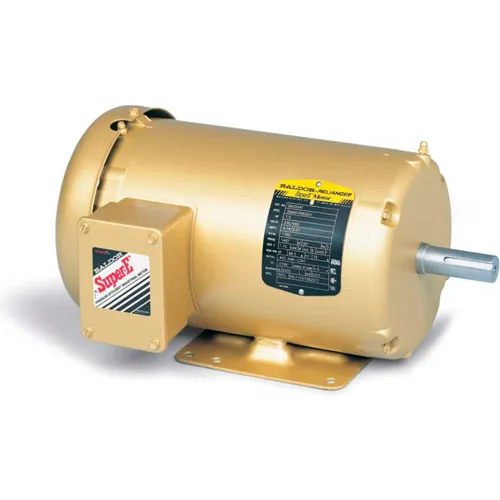

Baldor-Reliance Motor EM3613T, 5HP, 3470RPM, 3PH, 60HZ, 184T, 3634M, TEFC, F1
|
Questions & Answers (0)
Product Description
Baldor-Reliance Motor, 5HP,3470RPM,3PH,60HZ,184T,3634M,TEFC,F1
Features:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.
Features:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.
PRICE
$1,269.00
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 77 |
| Dimension C | 16.55 in |
Product Details
| Power Factor | 91 |
| Bearing Opp Drive End | 6205 |
| Drive End Flange | Standard |
| KVA Code | L |
| Motor RPM 60 Hertz | 3450 rpm |
| Mounting Location | Rigid |
| Phase | 3 |
| Manufacturers Part Number | EM3613T |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Bearing Drive End | 6206 |
| Brand | Baldor-Reliance |
| Insulation Class | F |
| Horsepower | 5 HP |
| Frame | 184T |
| Hertz | 60 Hz |
| Design Code | A |
| Enclosure Type | Totally Enclosed |
| Voltage | 230/460 V |
| Full Load Efficiency | 88.5 |
| Nameplate RPM | 3450 rpm |
| Full Load Amps | 11.8/5.9 FLA |
| Poles | 2 |
| Ambient Temperature | 40 °C |
| RPM Range | 3001-3600 rpm |
Compliance & Certifications
| DOE Code | 010A |
