Baldor-Reliance Motor VEM3613T,  5HP,  3470RPM,  3PH,  60HZ,  184TC,  3634M,  TEFC,  F1

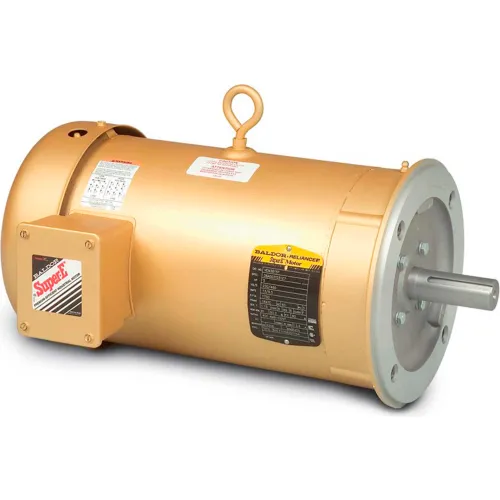

Actual product may differ from image shown

Baldor-Reliance Motor VEM3613T, 5HP, 3470RPM, 3PH, 60HZ, 184TC, 3634M, TEFC, F1

Item #: WBB391303

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,729.00 up to 38% OFF

Price: $1,076.00

$179.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor EM3615T, 5HP, 1750RPM, 3PH, 60HZ, 184T, 3643M, TEFC, F1

Baldor-Reliance Motor EM3615T, 5HP, 1750RPM, 3PH, 60HZ, 184T, 3643M, TEFC, F1

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size A - Made In USA

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size A - Made In USA

Baldor-Reliance Motor EM3545, 1HP, 3450RPM, 3PH, 60HZ, 56, 3516M, TEFC, F1, N

Baldor-Reliance Motor EM3545, 1HP, 3450RPM, 3PH, 60HZ, 56, 3516M, TEFC, F1, N

US Motors Hostile Duty TEFC, 5 HP, 3-Phase, 1760 RPM Motor, HD5P2E

US Motors Hostile Duty TEFC, 5 HP, 3-Phase, 1760 RPM Motor, HD5P2E

US Motors, ODP, 5 HP, 3-Phase, 1765 RPM Motor, D5P2D

US Motors, ODP, 5 HP, 3-Phase, 1765 RPM Motor, D5P2D

Baldor-Reliance Motor EM3311T,  7.5HP, 1770RPM, 3PH, 60HZ, 213T, 3733M, OPSB, F

Baldor-Reliance Motor EM3311T, 7.5HP, 1770RPM, 3PH, 60HZ, 213T, 3733M, OPSB, F

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size A - Made In USA

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size A - Made In USA

Baldor-Reliance Motor, 5HP,3470RPM,3PH,60HZ,184TC,3634M,TEFC,F1

Features:
  • Heavy gauge steel and cast iron frames
  • Ball bearings
  • ISR® (Inverter Spike Resistant®) copper windings
  • Low-loss electrical grade lamination steel
  • Three year warranty
Typical Applications:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.

Weights & Dimensions

  • Dimension C 16.55 in
  • Weight 78

Product Details

  • Power Factor 91
  • Mounting Location C-Face Footless
  • Bearing Drive End 6206
  • Poles 2
  • Drive End Flange C-Face
  • Nameplate RPM 3450 rpm
  • Ambient Temperature 40 °C
  • KVA Code L
  • Insulation Class F
  • RPM Range 3001-3600 rpm
  • Bearing Opp Drive End 6205
  • Voltage 230/460 V
  • Frame 184TC
  • Service Factor 1.15
  • Horsepower 5 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Phase 3
  • Enclosure TEFC
  • Full Load Efficiency 88.5
  • Brand Baldor-Reliance
  • Full Load Amps 11.8/5.9 FLA
  • Design Code A
  • Motor RPM 60 Hertz 3450 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number VEM3613T
