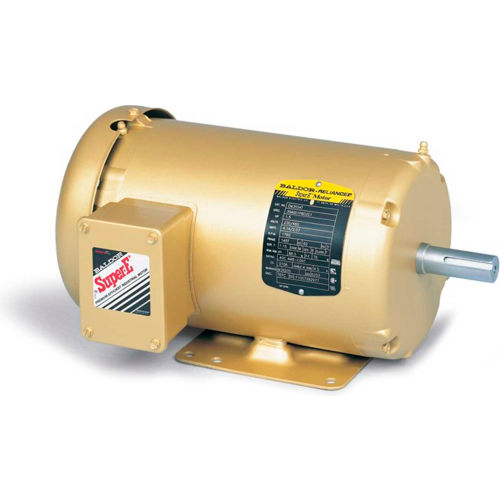

Baldor-Reliance Motor EM3615T, 5HP, 1750RPM, 3PH, 60HZ, 184T, 3643M, TEFC, F1

Actual product may differ from image shown

Baldor-Reliance Motor EM3615T, 5HP, 1750RPM, 3PH, 60HZ, 184T, 3643M, TEFC, F1

Item #: WBB389943

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$816.00 up to 26% OFF

Price: $600.00

$100.00/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 5HP,1750RPM,3PH,60HZ,184T,3643M,TEFC,F1

Features:
  • Ball bearings
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
Typical Applications:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

  • HORSEPOWER 5
  • ENCLOSURE TEFC
  • FRAME 184T
  • MOUNTING Rigid
  • NAMEPLATE RPM 1750
  • PHASE 3
  • MOTOR RPM 60Hz 1750
  • VOLTAGE 208-230/460
  • HERTZ 60
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • WEIGHT 95
  • RPM RANGE 1701-1800
  • SPEC. NUMBER --
  • POLES 4
  • C-DIMENSION INCHES 18.05
  • SERIAL-NUMBER --
  • DRIVE END FLANGE Standard
  • POWER-FACTOR 78
  • ENCLOSURE TYPE Totally Enclosed
  • is_motor Yes
  • DOE-CODE 010A
  • MANUFACTURER PART # EM3615T
  • BRAND Baldor-Reliance
  • 208V AMPS 13.9
  • KVA-CODE J
  • FL AMPS 13.9-13.4/6.7
  • INSULATION CLASS F
  • FL EFFICIENCY 89.5
  • BEARING-OPP-DRIVE-END 6205
  • BEARING-DRIVE-END 6206
  • DESIGN CODE B
