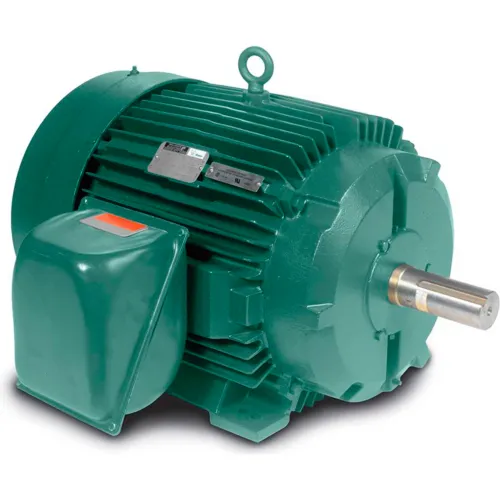

Baldor-Reliance Motor IDVSM2334T, 20HP, 1800RPM, 3PH, 60HZ, 256TC, TEFC, FOOT

Baldor-Reliance Motor IDVSM2334T, 20HP, 1800RPM, 3PH, 60HZ, 256TC, TEFC, FOOT

Item #: WBB389207

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$6,290.00 up to 32% OFF

Price: $4,287.00

$714.50/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor IDVSM3770T, 7.50HP, 1773RPM, 3PH, 60HZ, 213TC, TEFC, FOOT

Baldor-Reliance Motor IDVSM3770T, 7.50HP, 1773RPM, 3PH, 60HZ, 213TC, TEFC, FOOT

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size B - Made In USA

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size B - Made In USA

Baldor-Reliance Inverter/Vector Motor, IDVSNM3546, 3PH, 1HP, 1760RPM, 230/460V, TENV, 56C

Baldor-Reliance Inverter/Vector Motor, IDVSNM3546, 3PH, 1HP, 1760RPM, 230/460V, TENV, 56C

Baldor-Reliance Motor IDNM3542, .75HP, 1750RPM, 3PH, 60HZ, 56C, 3514M, TENV, F1

Baldor-Reliance Motor IDNM3542, .75HP, 1750RPM, 3PH, 60HZ, 56C, 3514M, TENV, F1

Marathon Motors Inverter Duty Motor, Y536, 143THTR5326, 1HP, 230/460V, 1800RPM, 3PH, 143TC, TENV

Marathon Motors Inverter Duty Motor, Y536, 143THTR5326, 1HP, 230/460V, 1800RPM, 3PH, 143TC, TENV

Baldor-Reliance Motor IDNM3534, .33HP, 1725RPM, 3PH, 60HZ, 56C, 3513M, TENV, F1

Baldor-Reliance Motor IDNM3534, .33HP, 1725RPM, 3PH, 60HZ, 56C, 3513M, TENV, F1

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size B - Made In USA

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size B - Made In USA

Baldor-Reliance Motor, 20HP,1800RPM,3PH,60HZ,256TC,TEFC,FOOT,

Features:
  • Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
  • Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
  • Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
  • Continuous constant torque to zero speed
Typical Applications:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.

Weights & Dimensions

  • Dimension C 24.5 in
  • Weight 356 lbs

Product Details

  • Enclosure Type Totally Enclosed
  • Motor Base Horsepower 20 HP
  • Is_Motor Yes
  • Motor Base Hertz 60 Hz
  • Duty Continuous
  • Enclosure TEFC
  • Phase 3
  • Max Motor Amps 46.6/23.3 A
  • Motor Base RPM 1775 rpm
  • Magnetizing Current 21.8/10.9 A
  • Brand Baldor-Reliance
  • Motor RPM 60 Hertz 1765 rpm
  • Max Motor Horsepower 20 HP
  • Max RPM 5400 rpm
  • Max Motor Volts 230/460 V
  • Rotor-Inertia 2.42
  • Max Motor RPM 2660 rpm
  • Motor Base Amps 51/25.5 A
  • Max Motor Hertz 90 Hz
  • Temp Code 2
  • RPM 1765 rpm
  • Type P
  • Poles 4
  • Drive End Flange C-Face
  • Ambient Temperature 40 °C
  • Constant Torque Hertz 1000 1
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • Motor Base Voltage 230/460 V
  • Frame 256TC
  • Service Factor 1
  • Horsepower 20 HP
