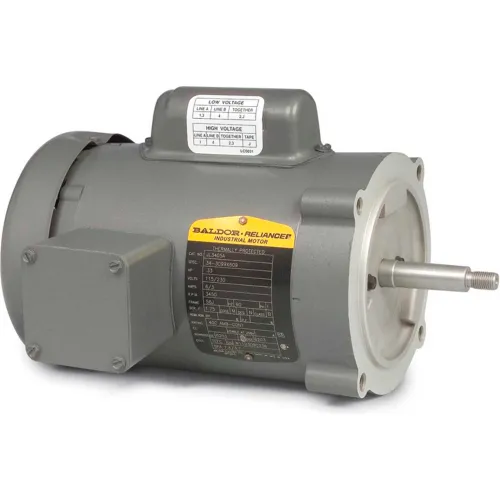

Baldor-Reliance Motor JL3510A, 1HP, 1725RPM, 1PH, 60HZ, 56J, 3528L, TEFC, F1, N

Actual product may differ from image shown

Baldor-Reliance Motor JL3510A, 1HP, 1725RPM, 1PH, 60HZ, 56J, 3528L, TEFC, F1, N

Item #: WBB389334

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,097.00 up to 38% OFF

Price: $683.00

$113.83/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor VL1309A, 1HP, 3450RPM, 1PH, 60HZ, 56C, 3428L, OPEN, F1, N

Baldor-Reliance Motor VL1309A, 1HP, 3450RPM, 1PH, 60HZ, 56C, 3428L, OPEN, F1, N

Baldor-Reliance Motor VL1306A, .75HP, 3450RPM, 1PH, 60HZ, 56C, 3424L, OPEN, F1

Baldor-Reliance Motor VL1306A, .75HP, 3450RPM, 1PH, 60HZ, 56C, 3424L, OPEN, F1

US Motors Pump, 1 HP, 3-Phase, 3450 RPM Motor, EE506

US Motors Pump, 1 HP, 3-Phase, 3450 RPM Motor, EE506

Marathon Motors Centrifugal Pump Motor, K223, 1.5HP, 208-230/460V, 3600RPM, 3PH, 56J FR, DP

Marathon Motors Centrifugal Pump Motor, K223, 1.5HP, 208-230/460V, 3600RPM, 3PH, 56J FR, DP

Baldor-Reliance Motor EJMM3219T, 7.5HP, 3500RPM, 3PH, 60HZ, 184JM, 3646M, OPSB

Baldor-Reliance Motor EJMM3219T, 7.5HP, 3500RPM, 3PH, 60HZ, 184JM, 3646M, OPSB

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, 1HP,1725RPM,1PH,60HZ,56J,3528L,TEFC,F1,N

Features:
  • Diecast aluminum end plates with machined steel bearing seat insert.
Typical Applications:
Residential and industrial pumps, swimming pool pumps, etc.

Weights & Dimensions

  • Dimension C 13.74 in
  • Weight 42 lbs

Product Details

  • Power Factor 68
  • Mounting Location C-Face Footless
  • Bearing Drive End 6205
  • RPM 1725 rpm
  • Poles 4
  • Drive End Flange C-Face
  • Ambient Temperature 40 °C
  • KVA Code K
  • Insulation Class B
  • RPM Range 1701-1800 rpm
  • Voltage 115/230 V
  • Bearing Opp Drive End 6203
  • Frame 56J
  • Service Factor 1
  • Horsepower 1 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Phase 1
  • Enclosure TEFC
  • Full Load Efficiency 67
  • Brand Baldor-Reliance
  • Full Load Amps 12.4/6.2 FLA
  • Design Code L
  • Motor RPM 60 Hertz 1725 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number JL3510A
