Baldor-Reliance Motor L3514TM, 1.5HP, 1725RPM, 1PH, 60HZ, 145T, 3532LC, TEFC

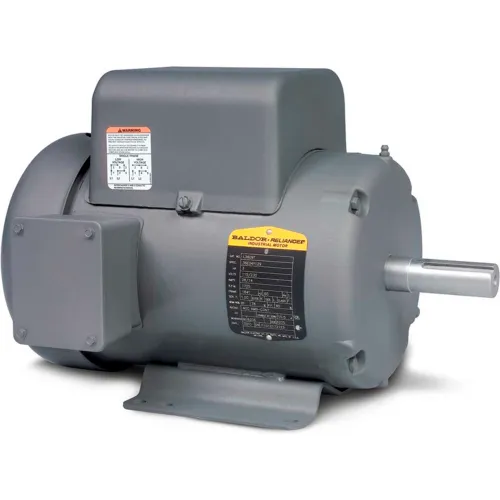

Actual product may differ from image shown

Baldor-Reliance Motor L3514TM, 1.5HP, 1725RPM, 1PH, 60HZ, 145T, 3532LC, TEFC

Item #: WBB389383

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,298.00 up to 39% OFF

Price: $792.00

$132.00/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor VL3507, .75HP, 1725RPM, 1PH, 60HZ, 56C, 3428LC, TEFC, F

Baldor-Reliance Motor VL3507, .75HP, 1725RPM, 1PH, 60HZ, 56C, 3428LC, TEFC, F

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

Baldor-Reliance Motor CL3503, .5HP, 3450RPM, 1PH, 60HZ, 56C, 3413L, TEFC, F1

Baldor-Reliance Motor CL3503, .5HP, 3450RPM, 1PH, 60HZ, 56C, 3413L, TEFC, F1

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, 1.5HP,1725RPM,1PH,60HZ,145T,3532LC,TEFC

Features:
  • Heavy guage steel frames
  • Ball bearings
  • Base is seam welded to frame
  • Snap Action starting switch for reliability
Typical Applications:
General purpose including compressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools, etc.

Weights & Dimensions

  • Dimension C 14.17 in
  • Weight 48

Product Details

  • Power Factor 80
  • Mounting Location Rigid
  • Bearing Drive End 6205
  • Poles 4
  • Drive End Flange Standard
  • Nameplate RPM 1725 rpm
  • Ambient Temperature 40 °C
  • KVA Code J
  • Insulation Class B
  • RPM Range 1701-1800 rpm
  • Bearing Opp Drive End 6203
  • Voltage 115/208-230 V
  • Frame 145T
  • Service Factor 1
  • Horsepower 1 1/2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Phase 1
  • Enclosure TEFC
  • Full Load Efficiency 75.5
  • Brand Baldor-Reliance
  • Full Load Amps 16/7.9-8 FLA
  • Design Code L
  • Motor RPM 60 Hertz 1725 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number L3514TM
