Features:
- Ball bearings
- Suitable for mounting any position
- Heavy gauge steel and cast iron frames
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

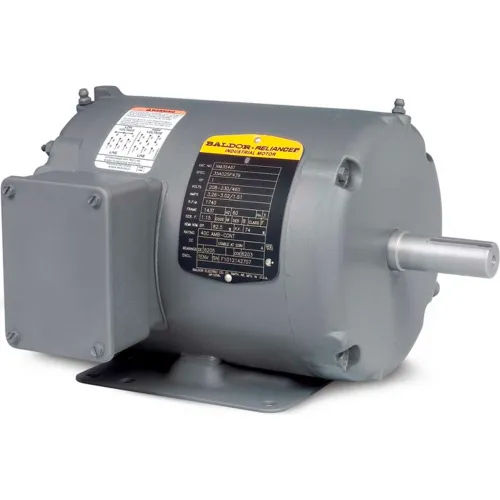

Baldor-Reliance Motor NM3538, .5HP, 1725RPM, 3PH, 60HZ, 56, 3420M, TENV, F1
Write a Review
|
Questions & Answers (0)
Product Description
Baldor-Reliance Motor, .5HP,1725RPM,3PH,60HZ,56,3420M,TENV,F1
Features:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.
Features:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.
PRICE
$629.00
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 26 |
| Dimension C | 10.88 in |
Product Details
| Power Factor | 69 |
| Bearing Opp Drive End | 6203 |
| Drive End Flange | Standard |
| KVA Code | K |
| Motor RPM 60 Hertz | 1725 rpm |
| Mounting Location | Rigid |
| Phase | 3 |
| Manufacturers Part Number | NM3538 |
| Enclosure | TENV |
| Service Factor | 1.25 |
| Bearing Drive End | 6203 |
| Brand | Baldor-Reliance |
| Insulation Class | F |
| Horsepower | 1/2 HP |
| Frame | 56 |
| Hertz | 60 Hz |
| Design Code | B |
| Amps @ 208V | 2.1 A |
| Enclosure Type | Totally Enclosed |
| Voltage | 230/460 V |
| Full Load Efficiency | 75.5 |
| Nameplate RPM | 1725 rpm |
| Full Load Amps | 1.8/.9 FLA |
| Poles | 4 |
| Ambient Temperature | 40 °C |
| RPM Range | 1701-1800 rpm |
