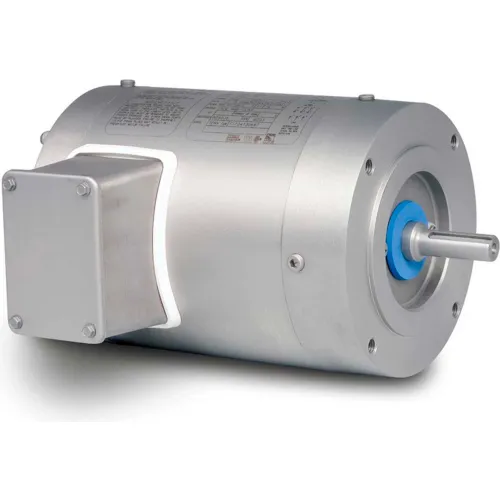

Baldor-Reliance Motor VSSWDM3537, .5HP, 3450RPM, 3PH, 60HZ, 56C, 3513M, TENV, F1

Actual product may differ from image shown

Baldor-Reliance Motor VSSWDM3537, .5HP, 3450RPM, 3PH, 60HZ, 56C, 3513M, TENV, F1

Item #: WBB391907

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$2,001.00 up to 39% OFF

Price: $1,221.00

$203.50/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor VEWDM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145TC, 3532M, TEFC, F1

Baldor-Reliance Motor VEWDM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145TC, 3532M, TEFC, F1

Baldor-Reliance Motor CWDM3538, .5HP, 1725RPM, 3PH, 60HZ, 56C, 3516M, TENV, F1

Baldor-Reliance Motor CWDM3538, .5HP, 1725RPM, 3PH, 60HZ, 56C, 3516M, TENV, F1

Leeson Motors Motor Washdown Motor-1/2HP, 208-230/460V, 1725/1425RPM, TEFC, ROUND, 1.15 SF, 74 Eff.

Leeson Motors Motor Washdown Motor-1/2HP, 208-230/460V, 1725/1425RPM, TEFC, ROUND, 1.15 SF, 74 Eff.

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, .5HP,3450RPM,3PH,60HZ,56C,3513M,TENV,F1

Features:
  • All external surfaces 300 series stainless steel: motor frame, endplates, conduit box, shaft, and base
  • Moisture resistant 200°C ISR® (Inverter Spike Resistant) magnet wire
  • Four condensate drains in each endplate
  • Enplate rabbets sealed and conduit box gasketed
  • Lip seals
  • Especially effective in highly corrosive environments where paint or other finishes do not hold up.
Typical Applications:
Food processing, packaging, outdoor and highly corrosive environments.

Weights & Dimensions

  • Dimension C 11.09 in
  • Weight 34 lbs

Product Details

  • RPM Range 3001-3600 rpm
  • Mounting Location C-Face Footless
  • Voltage 208-230/460 V
  • Bearing Opp Drive End 6203
  • Frame 56C
  • Service Factor 1.15
  • Horsepower 1/2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • RPM 3450 rpm
  • Enclosure TENV
  • Phase 3
  • Brand Baldor-Reliance
  • Full Load Amps 1.9-1.8/.9 FLA
  • Motor RPM 60 Hertz 3450 rpm
  • Poles 2
  • Hertz 60 Hz
  • Manufacturers Part Number VSSWDM3537
  • Drive End Flange C-Face
  • Ambient Temperature 40 °C
