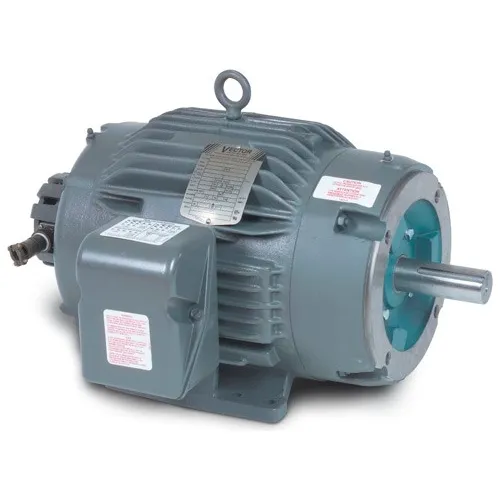

Baldor-Reliance Motor, 15HP,1180RPM,3PH,60HZ,284T,1056M,TEBC,F1
Features:
Test stands, material handling, packaging equipment, printing presses, etc. Applications requiring adjustable speed operation with full torque from zero to base speed and constant horseposer to maximum speed.
Features:
- Full torque at zero speed
- 1000:1 constant torque range
- Totally Enclosed Non Ventilated (TENV) or Totally Enclosed Blower Cooled (TEBC)
- 1/3 thru 500 horsepower
- Cast Iron construction
- C-Face with base 143TC thru 449TC
- Base mount only in frames 5007L-5009L
- Class H Insulated
- ISR® (Inverter Spike Resistant) magnet wire
- Meets NEMA MG 1, Part 31
Test stands, material handling, packaging equipment, printing presses, etc. Applications requiring adjustable speed operation with full torque from zero to base speed and constant horseposer to maximum speed.
Weights & Dimensions
- Dimension C 36.48 in
- Opposite End Bearing Size 6309
- Weight 426 lbs
Product Details
- Mounting Location Rigid
- Bearing Drive End 6311
- RPM 1180 rpm
- Poles 6
- Drive End Flange Standard
- Ambient Temperature 40 °C
- Insulation Class H
- RPM Range 1101-1200 rpm
- Voltage 230/460 V
- Frame 284T
- Service Factor 1
- Horsepower 15 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Enclosure TEBC
- Phase 3
- Slip Hertz 0.8 Hz
- Magnetizing Current 19.4/9.7 A
- Full Load Efficiency 93
- Brand Baldor-Reliance
- Full Load Amps 39.4/19.7 FLA
- Design Code A
- Motor RPM 60 Hertz 1180 rpm
- Hertz 60 Hz
- Max RPM 4000 rpm
- Rotor-Inertia 6.86
