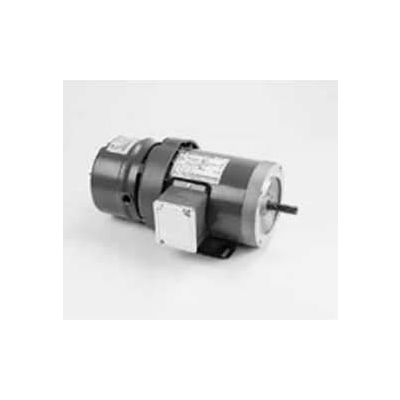

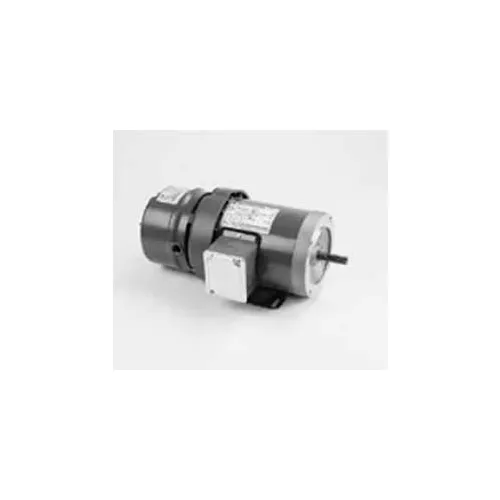

Marathon Motors Brakemotor, C405, 182TTTL7034, 3HP, 230/460V, 1800RPM, 182TC FR, 3PH, TENV

Actual product may differ from image shown

Marathon Motors Brakemotor, C405, 182TTTL7034, 3HP, 230/460V, 1800RPM, 182TC FR, 3PH, TENV

Item #: WBB869294

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,323.00

$220.50/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Brakemotor, C405, 182TTTL7034, 3HP, 230/460V, 1800RPM, 182TC FR, 3PH, TENV

Marathon's line of brake motors are available in totally enclosed fan cooled, open drip proof, or explosion proof designs, in either Single or Three Phase.

  • HORSEPOWER 3
  • ENCLOSURE TENV
  • FRAME 182TC
  • BRAND Marathon Motors
  • MOUNTING C-Face Rigid
  • MOTOR RPM 60Hz 1800
  • MOTOR RPM 50Hz 1500
  • RPM 1800
  • PHASE 3
  • VOLTAGE 230/460
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6206
  • WEIGHT 100
  • UL Recognized Construction
  • CSA Y
  • CATALOG NO. C405
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER C405
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • FL AMPS 8/4
  • OPPOSITE END BEARING SIZE 6206
  • DRIVE END BEARING SIZE 6207
  • ASSEMBLY F1 (F2 Modification Available)
  • BEARING-DRIVE-END 6207
  • ORIENTATION Horizontal
  • IP CODE 43
  • STARTING TYPE Across the Line
  • NEMA DESIGN B
  • CE Y
  • 50 Hertz kW 1.49
  • 50 Hertz HP 2
  • 50 Hertz SF 1.15
  • FL EFFICIENCY 90.2
  • 50 Hertz FL Amps 6.8/3.4
  • 50 Hertz Voltage 190/380
  • 50 Hertz FL eFF 88.50 Percent
  • KVA-CODE K
  • KILOWATS 2.24
  • MODEL NUMBER 182TTTL7034
