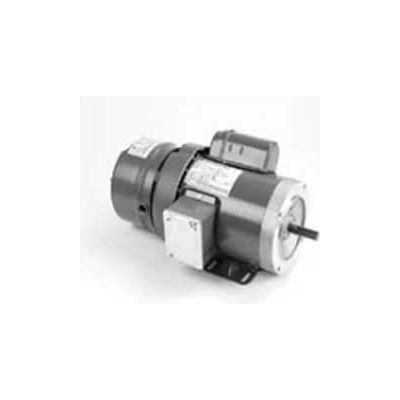

Marathon Motors Brakemotor, K2045A, 5KE49WN4571, 2HP, 230/460V, 1800RPM, 145T FR, 3PH, TEFC

Actual product may differ from image shown

Marathon Motors Brakemotor, K2045A, 5KE49WN4571, 2HP, 230/460V, 1800RPM, 145T FR, 3PH, TEFC

Item #: WBB869714

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,669.00

$278.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Brakemotor, C405, 182TTTL7034, 3HP, 230/460V, 1800RPM, 182TC FR, 3PH, TENV

Marathon Motors Brakemotor, C405, 182TTTL7034, 3HP, 230/460V, 1800RPM, 182TC FR, 3PH, TENV

Marathon Motors Brakemotor, D451, 56T11F5325, 1/3HP, 208-230/460V, 1200RPM, 56C FR, 3PH, TEFC

Marathon Motors Brakemotor, D451, 56T11F5325, 1/3HP, 208-230/460V, 1200RPM, 56C FR, 3PH, TEFC

Baldor-Reliance Motor VEBM3546, 1HP, 1765RPM, 3PH, 60HZ, 56C, 3524M, TEFC, F1, B

Baldor-Reliance Motor VEBM3546, 1HP, 1765RPM, 3PH, 60HZ, 56C, 3524M, TEFC, F1, B

Baldor-Reliance Motor KBL3406, .33HP, 1725RPM, 1PH, 60HZ, 56C, 3414L, TEFC, F1

Baldor-Reliance Motor KBL3406, .33HP, 1725RPM, 1PH, 60HZ, 56C, 3414L, TEFC, F1

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Marathon Motors Brakemotor, K2045, 5KE49WN4571, 2HP, 230/460V, 1800RPM, 145T FR, 3PH, TEFC

Marathon's line of brake motors are available in totally enclosed fan cooled, open drip proof, or explosion proof designs, in either Single or Three Phase.

Weights & Dimensions

  • Drive End Bearing Size 6205
  • Opposite End Bearing Size 6203
  • Weight 53 lbs

Product Details

  • Horsepower 2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Duty Continuous
  • Enclosure TEFC
  • Phase 3
  • Orientation Horizontal
  • Starting Type Across the Line
  • Full Load Efficiency 84
  • Brand Marathon Motors
  • Full Load Amps 5.6/2.8 FLA
  • Motor RPM 60 Hertz 1800 rpm
  • Manufacturers Part Number K2045
  • Catalog Number K2045A
  • Kilowatts 1.5 kW
  • Mounting Location Rigid
  • Bearing Drive End 6205
  • Assembly Required F1 Only
  • RPM 1800 rpm
  • Ambient Temperature 40 °C
  • KVA Code L
  • IP Code 43
  • Insulation Class B
  • RPM Range 1701-1800 rpm
  • Voltage 230/460 V
  • Frame 145T
  • Service Factor 1

Compliance & Certifications

  • NEMA Design B
  • CSA Certified Y
