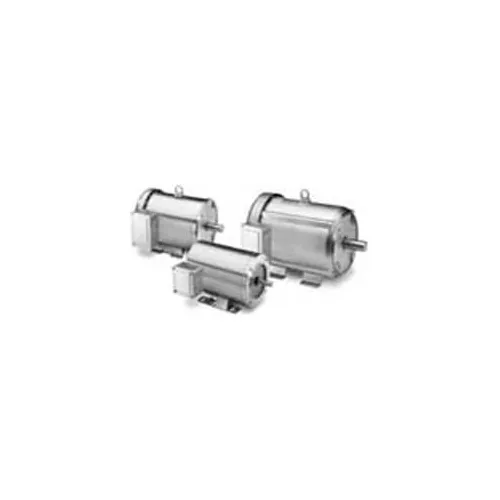

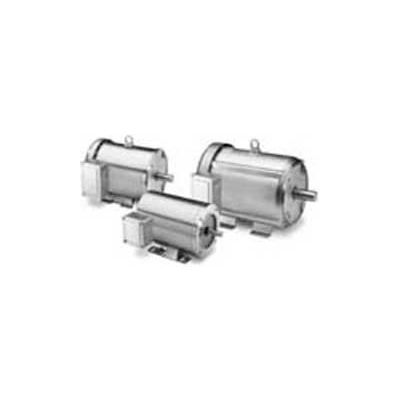

Marathon Motors Carbonator Pump Motor, 4406, 1/3HP, 115V, 1800RPM, Split PH, 48Y FR, DP
Marathon's pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion Proof Motors.
Marathon's pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion Proof Motors.
Weights & Dimensions
- Drive End Bearing Size 6203
- Opposite End Bearing Size 6203
- Weight 14 lbs
Product Details
- Mounting Location Resilient Base
- Bearing Drive End 6203
- RPM 1800 rpm
- Rotation CCW °
- Ambient Temperature 40 °C
- KVA Code N
- Insulation Class B
- RPM Range 1701-1800 rpm
- Voltage 115 V
- Frame 48Y
- Service Factor 1.15
- Horsepower 1/3 HP
- Enclosure Type Open/Drip Proof
- Is_Motor Yes
- Duty Continuous
- Enclosure DP
- Phase 1
- Orientation Horizontal or Vertical
- 60 Hertz RPM 1800 rpm
- Starting Type Switch and Mech
- Full Load Efficiency 0
- Brand Marathon Motors
- Full Load Amps 5.6 FLA
- Motor RPM 60 Hertz 1800 rpm
- Thermal Protection Automatic
- Manufacturers Part Number 4406
Compliance & Certifications
- UL Y
Customer Review
Product Q & A
There are no questions for this product.

Marathon Motors Carbonator Pump Motor, 4406, 1/3HP, 115V, 1800RPM, Split PH, 48Y FR, DP
$197.95
