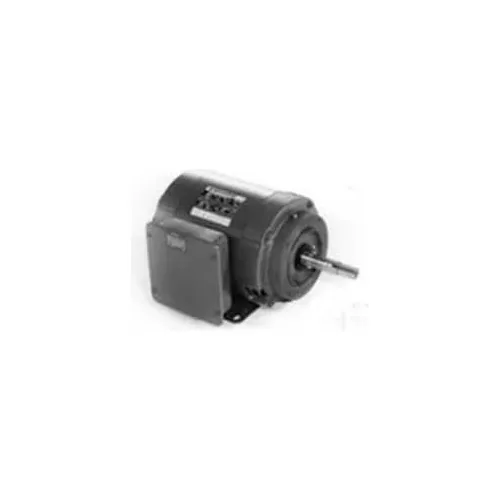

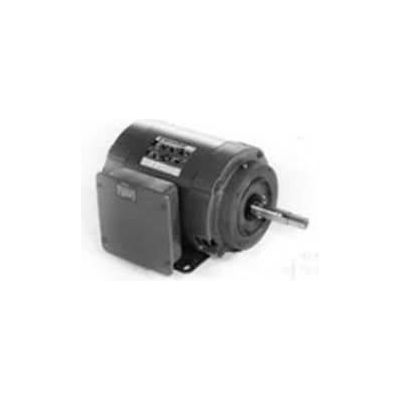

Marathon Motors Closed-Coupled Pump Motor, Z411, 7.5HP, 230V, 1800RPM, 1PH, 215JM FR, DP

Actual product may differ from image shown

Marathon Motors Closed-Coupled Pump Motor, Z411, 7.5HP, 230V, 1800RPM, 1PH, 215JM FR, DP

Item #: WBB869167

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,216.00

$202.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Closed-Coupled Pump Motor, Z411, 7.5HP, 230V, 1800RPM, 1PH, 215JM FR, DP

Marathon's pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion Proof Motors.

  • HORSEPOWER 7 1/2
  • ENCLOSURE DP
  • FRAME 215JM
  • BRAND Marathon Motors
  • MOUNTING C-Face Rigid
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 1
  • VOLTAGE 230
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ROTATION CCW
  • ENCLOSURE TYPE Open/Drip Proof
  • OPPOSITE END BEARING 6206
  • WEIGHT 120
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER Z411
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • FL AMPS 34.5
  • OPPOSITE END BEARING SIZE 6206
  • DRIVE END BEARING SIZE 6309
  • ASSEMBLY F1 Only
  • ORIENTATION Horizontal
  • BEARING-DRIVE-END 6309
  • IP CODE 22
  • STARTING TYPE Cap Start Cap Run
  • NEMA DESIGN L
  • CE Y
  • FL EFFICIENCY 84
  • KVA-CODE G
  • is_motor Yes
  • 60 HERTZ kW 5.6
  • 60 HERTZ RPMS 1800
  • MODEL NUMBER 215TBDW7029
