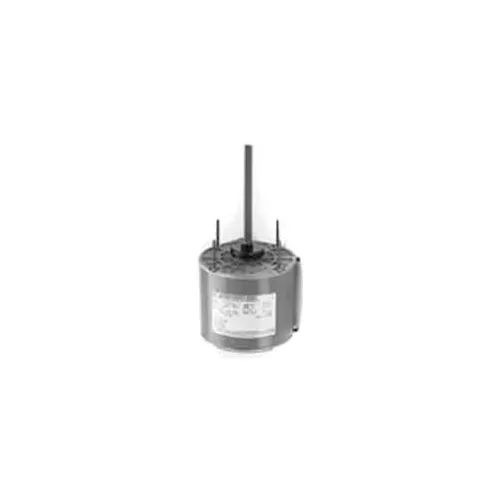

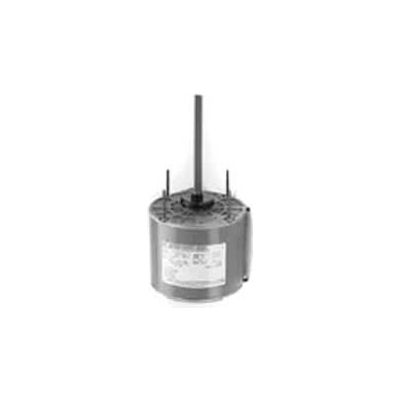

Marathon Motors Condenser Fan Motor, X400, 1/2HP, 1075 RPM, 460 V, 1 PH, 48Y FR, TEAO

Picture may not represent actual product

Marathon Motors Condenser Fan Motor, X400, 1/2HP, 1075 RPM, 460 V, 1 PH, 48Y FR, TEAO

Item #: WBB872076

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $150.95

Save $7.55 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Marathon Motors Condenser Fan Motor, X400, 1/2HP, 1075 RPM, 460 V, 1 PH, 48Y FR, TEAO

Direct drive condenser fans mounted vertically, shaft up. Models with open brackets should be mounted where they are shielded from rain. These motors need to be mounted within the airflow of the fan for proper cooling.

  • BRAND Marathon Motors
  • MANUFACTURERS PART NUMBER 1829
  • HORSEPOWER 1/2
  • MOTOR RPM 60Hz 1075
  • VOLTAGE 460
  • PHASE 1
  • FRAME 48Y
  • ENCLOSURE TYPE Totally Enclosed
  • HERTZ 60
  • SPEEDS 1
  • ROTATION CCW
  • THERMAL PROTECTION Automatic (under locked rotor only)
  • RATED RPM 1075
  • MOUNTING Extended Studs - Footless
  • BEARING TYPE Ball
  • DRIVE END BEARING SIZE 6203
  • OPPOSITE END BEARING SIZE 6203
  • INSULATION CLASS B
  • SERVICE FACTOR @ 60 Hz
  • AMBIENT TEMP C 40
  • DUTY Continuous AOM
  • is_motor Yes
  • WEIGHT LBS 16
  • RPM RANGE 1001-1100
  • ENCLOSURE TEAO
  • ASSEMBLY F1 (F2 Modification Available)
  • FL AMPS 1.8
  • OPPOSITE END BEARING Ball
