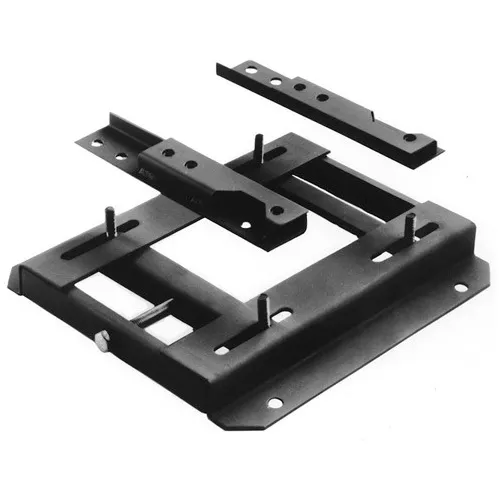

These Conversion Bases are designed to allow NEMA T frame motors to be used where corresponding NEMA U frame motors have been applied. Consisting of right and left hand pieces that fit to existing ounting studs positioned for U frame motors. The T frame motor is mounted to the pieces resulting in compensation for the difference in motor height, shaft position and mounting hole between the previous U frame motor and the replacement T frame motor. Made of the same top quality material as the adjustable motor bases.
Share
Spec Sheet
Baldor-Reliance Conversion Base, CB1814T, 7-1/2L X 2-1/4W X 1H
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$205.95
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 7-1/2 in |
| Width | 2-1/4 in |
| Height | 1 in |
| Thread | 5/16-18 in |
| Converts From "U" Frame | 182/184 |
| Motor Frame Size | 143/145 |
Product Details
| Description | Conversion Base |
| Manufacturers Part Number | CB1814T |
| Brand | Baldor-Reliance |
