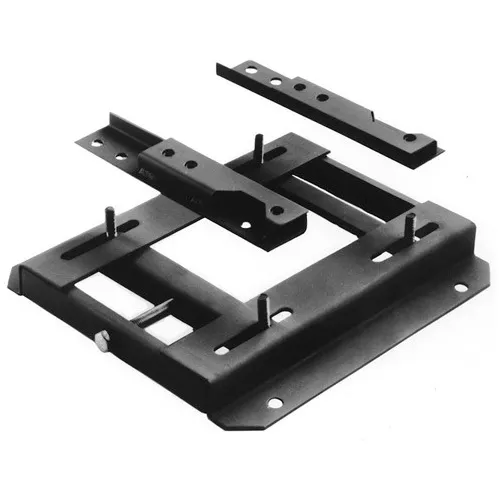

These Conversion Bases are designed to allow NEMA T frame motors to be used where corresponding NEMA U frame motors have been applied. Consisting of right and left hand pieces that fit to existing mounting studs positioned for U frame motors. The T frame motor is mounted to the pieces resulting in compensation for the difference in motor height, shaft position and mounting hole between the previous U frame motor and the replacement T frame motor. Made of the same top quality material as the adjustable motor bases. Converts to "T" Frame: 182T/184T.
Share
Spec Sheet
Baldor-Reliance Conversion Base, CB2118T, 9-1/2L X 1-3/4W X 3/4H
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$279.95
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 9-1/2 in |
| Width | 1-3/4 in |
| Height | 3/4 in |
| Thread | 3/8-16 in |
| Converts From "U" Frame | 213/215 |
| Motor Frame Size | 182/184 |
Product Details
| Description | Conversion Base |
| Manufacturers Part Number | CB2118T |
| Brand | Baldor-Reliance |
