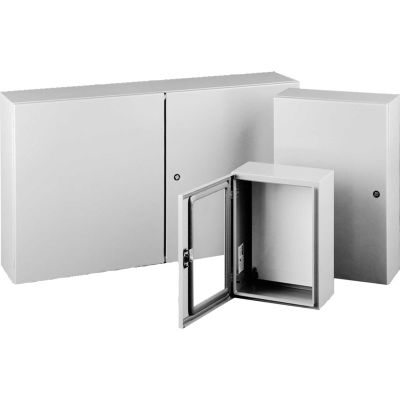

Hoffman CSD201610W, Concept™ Wall-Mount Encl/Window, 20.00X16.00X10.00, Steel/Gray

Hoffman CSD201610W, Concept™ Wall-Mount Encl/Window, 20.00X16.00X10.00, Steel/Gray

Item #: WBB1456043

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$719.00 up to 3% OFF

Price: $698.00

$116.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Hoffman CSD30248LGEMC, Concept™ Wall-Mount Emc Encl, 30.00X24.00X8.00

Hoffman CSD30248LGEMC, Concept™ Wall-Mount Emc Encl, 30.00X24.00X8.00

Hoffman CFM16126, Concept™ Flush-Mount Encl, 16.00X12.00X6.00, Steel/Gray

Hoffman CFM16126, Concept™ Flush-Mount Encl, 16.00X12.00X6.00, Steel/Gray

Hoffman A1210CH, Continuous Hinge W/Clamps, Type 12, 12.00X10.00X5.00, Steel/Gray

Hoffman A1210CH, Continuous Hinge W/Clamps, Type 12, 12.00X10.00X5.00, Steel/Gray

Hoffman A606CH, Continuous Hinge W/Clamps, Type 12, 6.00X6.00X4.00, Steel/Gray

Hoffman A606CH, Continuous Hinge W/Clamps, Type 12, 6.00X6.00X4.00, Steel/Gray

Hoffman A10086CH, Continuous Hinge W/Clamps, Type 12, 10.00X8.00X6.00, Steel/Gray

Hoffman A10086CH, Continuous Hinge W/Clamps, Type 12, 10.00X8.00X6.00, Steel/Gray

Hoffman ASE6X6X4, Pull Box, Screw Cover /Ko'S, 6.00X6.00X4.00, Steel/Gray

Hoffman ASE6X6X4, Pull Box, Screw Cover /Ko'S, 6.00X6.00X4.00, Steel/Gray

Hoffman A36H30DLP Wall Mount, Type 4 Encl, 36.00x30.00x12.00, Steel/Gray

Hoffman A36H30DLP Wall Mount, Type 4 Encl, 36.00x30.00x12.00, Steel/Gray

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Hoffman CSD201610W, Concept™ Wall-Mount Encl/Window, 20.00X16.00X10.00, Steel/Gray

CONCEPT™ Enclosures are ideal for machine control applications. With streamlined styling, flush quarter-turn latches and an attractive, durable finish. Available in solid or window single-door and two-door landscape, flush-mount and sloped-top versions for application and mounting flexibility. Two-door landscape models provide full-width access and easy panel installation.

Features:
  • 14, 16 or 18 gauge steel (see table)
  • Seams continuously welded and ground smooth
  • Corner-formed doors
  • Simple easy-to-remove and install hinge pins with built-in captivation clip
  • High-torque threadless studs and fasteners on door
  • Minimum-width body flange provides maximum door opening (210degrees)
  • External formed body flange
  • Panel mounting studs fit optional CONCEPT panels and other accessories
  • Mounting holes in back of body for optional external wall-mount brackets
  • Hidden hinges
  • Doors are interchangeable and easily removed by pulling clip-style hinge pins
  • Seamless foam-in-place gasket
  • Quarter-turn slotted latch(es)
  • Door alignment device on doors wider than 30 in.
  • Four hinges on 60-in.-high enclosures
  • Grounding stud on body; bonding provision on door (except window-door models)
  • Provisions for thermoplastic data pocket (right-hand hinged door on two-door models)
  • Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
  • Single-door enclosures have a three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
  • Window-door enclosures have a clear polycarbonate window flush with door surface
  • Mounting frame on flush-mount enclosures extends completely around enclosure
  • Two-door enclosures have a overlapping door design which provides full-width access
  • Two door enclosures have a three-point latch system on right-hand hinged door furnished with flush slotted insert
  • Illustrated instruction sheet

Weights & Dimensions

  • Window Size (M x N) 16.49 x 11.30 in
  • J Dimension 10 in
  • Mounting G x H 18.50 x 14.50 in
  • Panel Size (D x E) 462 x 361
  • A x B x C 20.00 x 16.00 x 10.00 in
  • Body Gauge 18 ga
  • Door Gauge 14 ga
  • Panel Gauge 18.20 x 14.20 ga

Product Details

  • Number of Latches 1
  • Description Wall Mount Enclosure
  • Latches Style Quarter-Turn
  • Concept Panel CP2016
  • Type 4/12
  • Brand Hoffman
  • Conductive Panel CP2016G
  • Material Steel
  • Manufacturers Part Number CSD201610W
  • Color Family Gray
