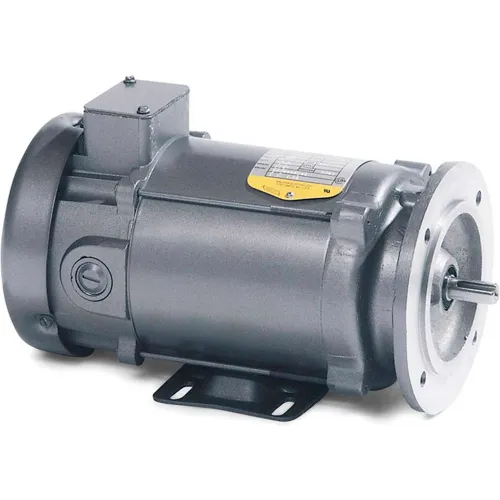

Baldor-Reliance DC Metric Motor, VP3468D, 1.5 HP, 3000 RPM, TEFC, D90D Frame

Permanent Magnet DC Motors are available with a choice of IEC B5 flanges in .2 to 5 HP or B14 C-faces in .2 to 2 HP. All are designed for 180 volt input power with a 20:1 constant torque speed range. These metric frames are designed for replacement on equipment requiring an IEC interface with the gearbox. Features Metric Flange or C-Face per IEC Standards Bolt on non-metric base Class F insulation Tach adaptable except type 135S 20:1 constant torque speed range Type 135S and 3300P motors are TENV, all others are TEFC Application(s) SCR Drive Motors for replacement on machinery requiring ...

Baldor-Reliance Motor, .18/.25HP,1750RPM,DC,D71D,3320P,TENV,F2 Features: Metric Flange or C-Face per IEC Standards Bolt on non-metric base Class F insulation Tach adaptable except type 135S 20:1 constant torque speed range Type 135S and 3300P motors are TENV, all others are TEFC Typical Applications: SCR Drive Motors for replacement on machinery requiring metirc mounting dimensions.

Baldor-Reliance DC Metric Motor, VP3428-14, 0.5 HP, RPM, TEFC, D71C Frame Permanent Magnet DC Motors are available with a choice of IEC B5 flanges in .2 to 5 HP or B14 C-faces in .2 to 2 HP. All are designed for 180 volt input power with a 20:1 constant torque speed range. These metric frames are designed for replacement on equipment requiring an IEC interface with the gearbox. Features Metric Flange or C-Face per IEC Standards Bolt on non-metric base Class F insulation Tach adaptable except type 135S 20:1 constant torque speed range Type 135S and 3300P motors are TENV, all others are ...

Metric DC Motor: 1.5KW, 3000 RPM, Totally-Enclosed (IP44) Enclosure, 80D Frame, Special, 24V, S1 duty. These low voltage (24V) metric dimensioned motors are built to IEC 34-1 electrical and mechanical standards. The IEC 63 and smaller frames are available with an integral B5 flange or B14 face less base. An optional B3 rigid base kit is available. A terminal board is provided for connections. All fasteners are metric.

In applications where only single phase power is utilized, these motors are available from 1/12 Hp through 15 Hp in TEFC and ODP designs. Standard foot mounted configurations are available, as well as C-Face foot mounted and C-Face footless. These are also offered in 1/4 Hp through 5 Hp as Super-E® Premium Efficient motors where energy savings is desired. Features Ball bearing design 1-1/2 horsepower ratings are rated at 14 amps or less on 115 volts Manual thermal overload located in the conduit box UL and CSA recognized component approval 200°C copper windings Application(s) ...
