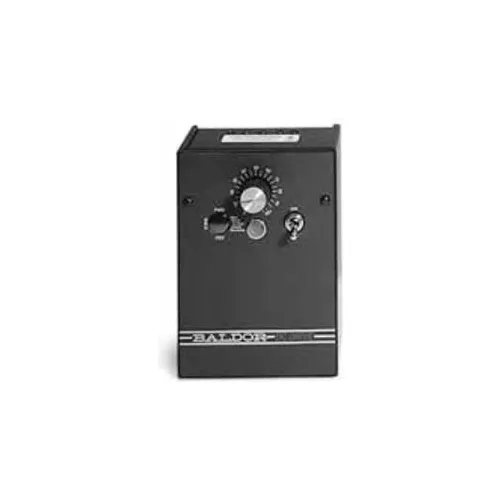

DC SCR NEMA 4X Control Accessory, BC153, Electronic Forward-Dynamic Brake-Reverse Kit

Bipolar signal isolator for BC254

Bipolar signal isolator board

DC Motor: 1 1/2HP, 1800 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, WMS56CZ Frame, Rigid C, 24V, Continuous duty. Suitable for applications having battery or solar powered operations, or generator supplied low voltage DC. These motors are high torque, continuous duty designs. Easy Access Brushes for servicing Large over-sized brushes assure longer brush life Removable stamp steel base Permanently lubricated sealed ball bearings High starting Torque Linear speed/torque over entire speed range Capable of Dynamic braking Two-lead connections for simple rotation reversing Click here to ...

These are General Purpose drives designed for use with Permanent Magnet or Shunt wound DC motors. NEMA 1 enclosed drives are suitable for most industrial applications. The NEMA 4X controls are best suited for washdown or outdoor installations or for extremely dusty applications. Chassis only drives are available for building into equipment, machinery or existing enclosures. Most controls have a dual voltage switch allowing the control to be used with either 115 volt or 230 volt, single-phase, input power at either 50 or 60 Hz service. It is important that the proper voltage motor be ...

Features Dual voltage - 120/240 VAC, 50/60 Hz Adjustable horsepower settings Barrier terminal strip Packaged bridge supply (full wave) 1% speed regulation with armature voltage Feedback; 1/2% with tach feedback Adjustable minimum speed (0-30% of max.) Adjustable maximum speed (66-110% of base) Adjustable IR compensation Adjustable linear acceleration (0.5-8 sec.) Adjustable current limit to 15 amps Line voltage compensation 5K ohm speed potentiometer With leads, knob and dial included Power on/off switch 50:1 speed range Overload capacity: 150% for one minute Transient voltage protection ...
