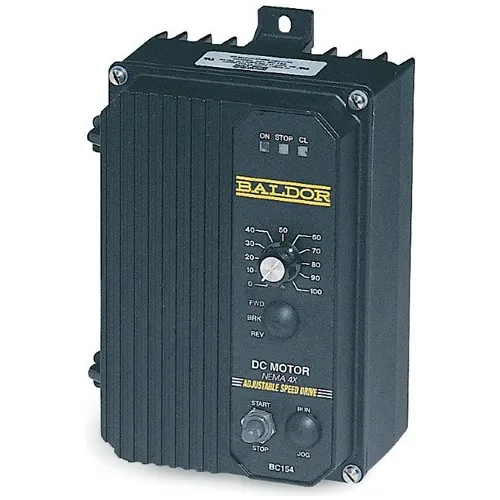

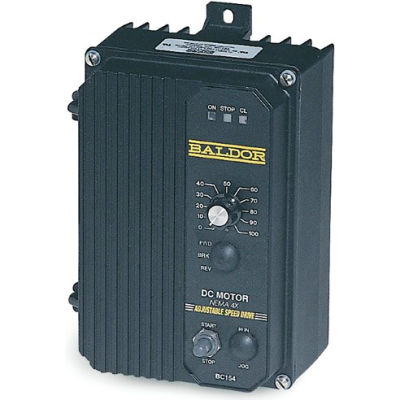

Baldor-Reliance DC Control, BC154, DC SCR CONTROL, 115/230V, 1/50-2 HP, NEMA 4X

Baldor-Reliance DC Control, BC154, DC SCR CONTROL, 115/230V, 1/50-2 HP, NEMA 4X

Item #: WBB444083

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $650.00

$108.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance DC Control, DC SCR CONTROL, 115/230V, 1/50-2 HP, NEMA 4X

Features:
  • Full wave SCR control with free wheeling diode (NEMA type K)
  • Field power supply allows use with shunt wound DC motors as well as permanent magnet motors
  • Adjustable accel, decel, current limit, IR comp, min and max speed
  • Current limit indicating LED
  • 5K speed pot for speed control
  • Anti-demag circuit protects PM motors and helps protect the SCR power bridge against direct shorts
  • Noise rejection circuit eliminates false starts and blown SCR's
  • UL and cUL recognized
Typical Applications:
Conveyors, mixers, packaging machinery and other applications requiring variable speed and constant torque.

  • BRAND Baldor-Reliance
  • MANUFACTURERS PART NUMBER BC154
  • ENCLOSURE MATERIAL NEMA 4X
  • RS422/RS485 N/A
  • RS232 N/A
  • UL Approved
  • SPECIFICATION NUMBER --
  • CUL APROVAL Approved
  • DEPTH INCHES 5
  • RESOLVER INPUT N/A
  • FIELD POWER SUPPLY N/A
  • ISOLATED ENCODER N/A
  • INPUT PHASE - RATED 1
  • MASTER/PULSE/FOLLOWER N/A
  • ISOLATED INPUT Optional
  • DC TACH INTERFACE N/A
  • CSA APPROVAL Approved
  • HI-RES ANALOG INPUT N/A
  • DYNAMIC/REGENERATIVE BRAKING NONE
  • AMBIENT TEMPERATURE MIN 0
  • AMBIENT TEMPERATURE MAX 40
  • COOLING TYPE CONVECTION
  • CE APPROVAL Approved
  • TYPE ANALOG
  • INPUT VOLTAGE 115/230
  • HEIGHT INCHES 9.5
  • HP 2
  • WIDTH INCHES 5.9
  • NUMBER OF AXIS 1
  • PNEUMATIC-IN/RELAY-OUT N/A
  • OPERATOR INTERFACE POT
