TRITAN Double Row Angular Contact Bearings, 2 Metal Shields, Medium Duty, 10mm Bore, 30mm OD

NACHI 5200-2NS, Double Row Angular Contact, Double Sealed, 10MM Bore x 30MM OD x 14.3MM W Double Row Angular Contact Ball Bearings are functionally same as two single row angular contact ball bearings mounted back-to-back except they have only one inner ring and one outer ring. These bearings take heavy radial loads, and axial loads equally in either direction.

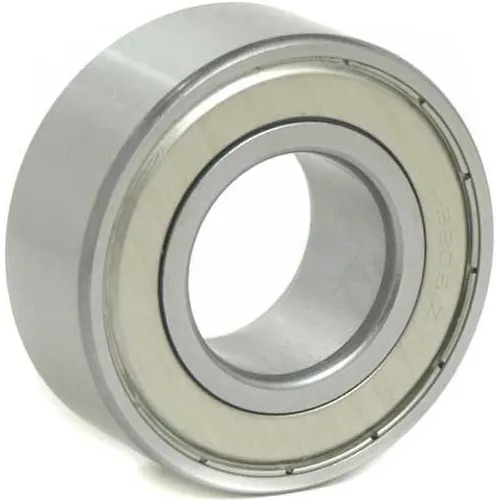

NACHI 5202ZZ, Double Row Angular Contact Bearing, Double Shielded, 15MM Bore x 35MM OD x 15.9MM W Double Row Angular Contact Ball Bearings are functionally same as two single row angular contact ball bearings mounted back-to-back except they have only one inner ring and one outer ring. These bearings take heavy radial loads, and axial loads equally in either direction.

BL Double Row Angular Contact Bearings 5304-2RS, 2 Rubber Seals, Heavy Duty, 20mm Bore, 52mm OD These bearings are used in applications with heavy radial loads, and/or combined radial and thrust loads, or two directional loads. They are constructed without a filling slot which allows for high RPM use, and incorporate a non-metallic cage for quiet operation. Common Interchanges: 3304A 2RS, 5304SBKZZ MRC, 995304 NDH

SMT Guide Wheel Bearings work as linear motion components to help providing smooth linear motion. The outer rings of SMT bearings engage either with protruded or concaved V-shape track rails. They are made of AISI 52100 bearing steel or SUS 440C stainless steel for corrosion resistance. Since their internal design is same as double row angular contact ball bearings, they are capable of supporting radial, axial or moment loads.

SMT 5200 series Double Row Angular Contact Ball Bearings consist of two single row angular contact ball bearings matched Back to Back arrangement, with inner and outer rings integrated. These bearings have the same bores and outside diameters as the corresponding bearings, 6200 series. SMT 5200 series are suitable for increased axial and radial rigidity in applications that design limits space. The contact angle is 30 degree inverted outside.
