Nachi

Model # :WBB937191

MPN #: E5015XW33NNTS1

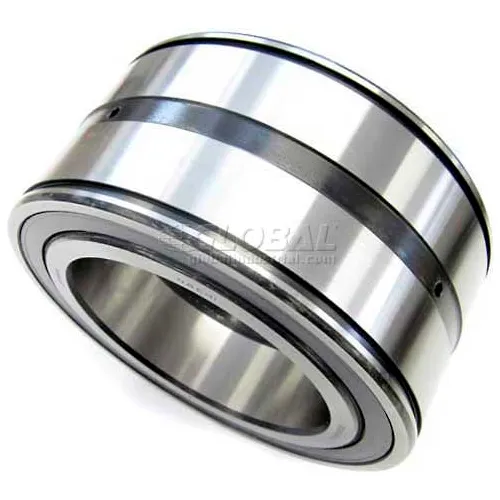

NACHI Double Sealed Sheave Bearing E5015XW33NNTS1, Without Snap Rings & Coating, 75MM Bore, 115MM OD

Product Description
Features

  • NACHI Sheave Bearing is a Double Row Full Compliment Cylindrical Roller Bearing
  • Since the bearing carries the highest Dynamic & Static Load Ratings, it is highly recommended for Rope Sheave applications
  • If snap rings are used on both sides of outer ring, it is easy to set the axial location of the bearing
  • Re-lubrication can be done through lubrication holes and groove on the inner ring or outer ring (for certain items)
  • Operating temperature range is -30° to 80°C (-35° to 175°F)
PRICE
$689.00

1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Bore Diameter75 mm
Inner Width54 mm
Outer Width53 mm
ToleranceISO Normal
Diameter115 mm

Product Details

Snap Groove B4.2 mm
Dynamic Load Rating (N)177,000
Bearing StyleWithout Snap Rings & Coating
Cage TypeNone
Radial Clearance0.055 to 0.105 mm
Oil Hole & Groove on Outer RingInner & Outer Rings
Axial Limiting Load (N)305,000
Manufacturers Part NumberE5015XW33NNTS1
Grease Max Speed1,350 rpm
Snap Groove Cg48.2
Snap Groove D1112.1 mm
BrandNachi
