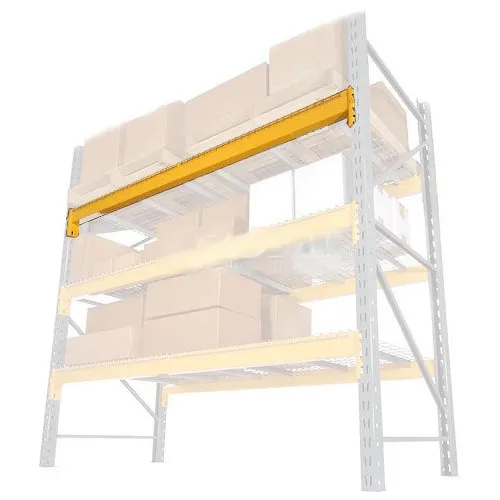

Penco Double Slotted Pallet Rack Beam - 96"W x 4"H - 4,564 Lbs. Cap per/pair

Tear drop, snap-in locking slots ensure a secure and stable unit. One piece box-formed reinforced upright frame punched 2" on centers for maximum adjustability. Positive six-way locking action; right to left; front to back; up/down. Lock automatically snaps into place and secures beam, is visible for easy checking and fast adjustment. 1-1/2" step beam design accommodates cross bars and decking. BEAMS One pair required per level. Our beams fit both tear drop styles of upright with our new style rivet. Sold in pairs (*Price is per pair).

INTERLAKE TEAR DROP PALLET RACK BEAMS The Interlake Mecalux slotted pallet rack beams are the horizontal elements of the pallet rack system in which loads are placed.These pallet rack beams are from one roll formed piece of steel, with a continuous seam weld on its base. Each load level is formed by two beams, one beam at each post of the frame. The tear drop pallet rack beams can be used for Interlake Mecalux tear drop bolted upright pallet rack frames or Interlake Mecalux tear drop welded upright pallet rack frames. FEATURES: 16 GA roll formed beams have welded end plates End plates ...

Penco's heavy-duty pallet racks are carefully engineered to provide highly efficient storage for palletized items. Combining design and excellence with high strength steel to achieve a superior strength-to-weight ratio, the Penco Pallet Rack can handle nearly any storage job you can give it. The basic components of Penco Pallet Racks are upright frames and beams. Each is manufactured to exacting tolerances to provide many years of dependable service at their rated loads. Penco's time-proven pallet rack design continues to be a favorite of material handling professionals. The slotted ...

Steel King® SK2000 Seismic Pallet Rack Step Beam 4"H X 96"L 5080 Lbs. Capacity Per Pair Features: Can be used in some seismic areas Heavy Duty step beams have 3 rivet connection Safety clips auto-engage to assure rack integrity and safety Contain additional welds to resist seismic forces RMI certified

✓16-gauge steel beams ✓5370 lb. shelf capacity (per pair) ✓ Compatible with teardrop-style uprights GLOBAL TEAR DROP PALLET RACK Beams High strength one-piece tube-seamed steel beams. Powder coat baked polyester finish. 1-5/8"H step beam design accommodates cross bars and decking. Beams provide secure connections to upright frames using 3 button studs on the connector plate ends. 3-button studs provide positive locking, along with the self-engaging spring-loaded Safety Piston. Full "C" type weld construction ensures maximum durability under all conditions. To ...
