Features:

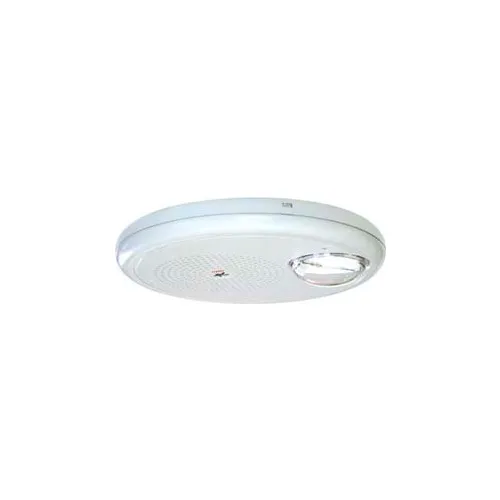

- Genesis ceiling horn-strobes are small, compact, and attractive audible-visible emergency signaling devices.
- Protruding no more than 1.6 (41 mm) from the ceiling, Genesis horn-strobes blend with any decor.
- Genesis strobes do not require bulky specular reflectors and lenses. Instead, an exclusive cavity design conditions light to produce a highly controlled distribution pattern. Significant development efforts employing this new technology have given rise to a new benchmark in strobe performance FullLight technology.
- FullLight strobe technology produces a smooth light distribution pattern without the spikes and voids characteristic of specular reflectors.
- Ensures the entire coverage area receives consistent illumination from the strobe flash.
- Genesis strobes with FullLight technology go well beyond the minimum UL-required cross pattern.
- Depending on the model, Genesis horn-strobes feature 15 to 95, or 95 to 177 candela output (see ordering information), which is selectable with a conveniently-located switch on the front of the device.
- Candela output setting is clearly visible even after final installation, yet it remains locked in place to prevent unauthorized movement after installation.
- Genesis horn-strobes feature textured housings in architecturally neutral white.
- Ingenious iconographic symbol indicates the purpose of the device.
- Universal symbol is code-compliant and is easily recognized by all building occupants regardless of what language they speak.
- Models with FIRE markings are also available.
- Field configurable no need to remove the device!
- 15/30/75/95 cd and 95/115/150/177 cd models available
- Switch settings remain visible even after the unit is installed
- Low/high dB settings
- Unique low-profile design
- 30 per cent slimmer profile than comparable signals
- No visible mounting screws
- Available with white or red housings
- Easy to install
- Fits all standard 4 square electrical boxes with plenty of room behind the signal for extra wire no extension ring or trim plate needed
- Pre-assembled with captive hardware no loose pieces
- #18 to #12 AWG terminals ideal for long runs or existing wiring
- Unparalleled performance
- Exclusive FullLight strobe technology produces the industry s most even light distribution
- Single high-efficiency microprocessor controls both horn and strobe
- Low current draw minimizes system overhead
- Independent horn control provided over a single pair of wires
- Highly regulated in-rush current allows the maximum number of strobes on a circuit
- 70 dB peak multiple frequency tone improves wall penetration
