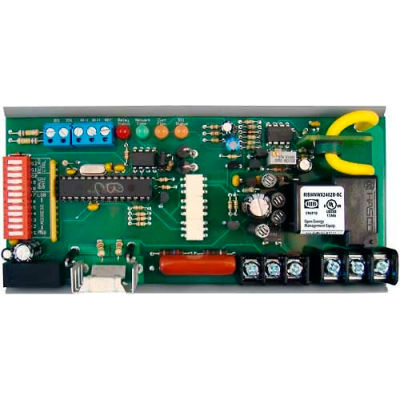

RIB® BacNet Panel Relay RIBMNWX2402B-BC, 2.75", 20A, 240VAC/24VAC/DC, Current Sensor
RIB® BACnet, LonWorks, and Ethernet Network Compatible Devices can be hard wired and used instead of more expensive multi-output controllers when a few more control points are needed, and large controllers are too much for the job. They can also be used when control points are widely spread throughout the job site. These devices have been prepackaged to save the installer the time, trouble, and expense of buying separate components and assembling them on the job. Functional Devices also offers WiFi, Zigbee, AIC, and EnOcean WIRELESS Network Compatible Devices that can act singly as a (LCS) load control switch or as part of a larger network.
RIB® BACnet, LonWorks, and Ethernet Network Compatible Devices can be hard wired and used instead of more expensive multi-output controllers when a few more control points are needed, and large controllers are too much for the job. They can also be used when control points are widely spread throughout the job site. These devices have been prepackaged to save the installer the time, trouble, and expense of buying separate components and assembling them on the job. Functional Devices also offers WiFi, Zigbee, AIC, and EnOcean WIRELESS Network Compatible Devices that can act singly as a (LCS) load control switch or as part of a larger network.
Product Specifications
- INCLUDESCurrent Sensor
- VOLTAGE24VAC/DC 208-277VAC
- CONTACT TYPESPDT
- # RELAYS1
- WARRANTY YEARS1
- LENGTH INCHES6
- WIRE SIZE16"
- HUMIDITY RANGE5 To 95 Percent (Noncondensing)
- BRANDRIB®
- MANUFACTURERS PART NUMBERRIBMNWX2402B-BC
- WIRE RATING600V
- APPROVALS OR CERTIFICATIONSUL Listed
- AMPS20
- WIDTH INCHES2.75
- EXPECTED RELAY LIFE10 Million Cycles Minimum Mechanical
- OPERATING TEMPERATURE-30° To 140°F
- HEIGHT INCHES1.75
- DESCRIPTIONBacNet Panel Relay
