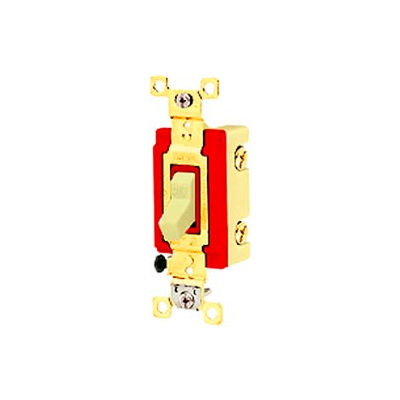

Bryant 4903PLC120 Industrial Grade Toggle Switch, Three Way, 20A, 120V AC, Pilot Clear

Rollover image to zoom in

Click image to enlarge

Video - Click to Play

prev See all 28 items in product family next

Bryant 4903PLC120 Industrial Grade Toggle Switch, Three Way, 20A, 120V AC, Pilot Clear

Email Print

Item #: WBB211310

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

Price: $ 30.95

Frequently Purchased Together

Bryant Ss1 Toggle Plate, 1-Gang, Standard, Satin Stainless - Pkg Qty 10

Not Yet Rated

$13.80

Sold in packages of 10

Quantity:

Add to list

Customers Who Viewed This Also Viewed

Product Information

Customer Review

Product Q&A

Special Purpose AC, Industrial Switches

Construction:

Base Material: Thermoset
Face Material: Thermoset, Color coded by voltage
Toggle/Actuator Material: Nylon
Terminals: High Performance Copper Alloy
Mounting Yoke: Brass and Nickel Plated Steel
Contacts: Silver Cadmium Oxide
Movable Contact Arm: High Performance Copper Alloy
Rocker: Thermoplastic Elastomer
Ground Terminal: Brass and Nickel Plated Steel
Terminal Screws: Brass
Ground Screw: Brass (green)
Auto Ground Clip: Stainless Steel

Technical Specs:

Dielectric Voltage: Withstands 1500V Minimum
Overload: Minimum 48 times rated current for 100 cycles
Temp. Rise: 30 deg C maximum at rated current
Max Continuous Current: 20A
Endurance: 50,000 cycles min, tungsten filament lamp load (Fed Spec) #WS896E
Flammibility: UL 94 V2
Operating Temperature: Maximum continuous 75 deg C- Minimum -40 dec C (w/o impact)

Certifications:

Standards: Complies with UL 20 and NEMA WD-1
Federal Specifications: Verified under Fed Spec #WS896E
UL Certification: UL Listed, File E1464, Guide #WMUZ

Product Specifications

- AMPS20A
- BRANDBryant
- COLOR FINISHClear
- MANUFACTURERS PART NUMBER4903PLC120
- VOLTAGE120V AC
- WIRING SYLEBack & Side Wired
- CONTACT TYPEThree Way
- TERMINAL GAUGE MAX#10 AWG
- TERMINAL GAUGE MIN#14 AWG
- ACTUATORPilot Handle
- MADE IN THE U.S.A.Yes
