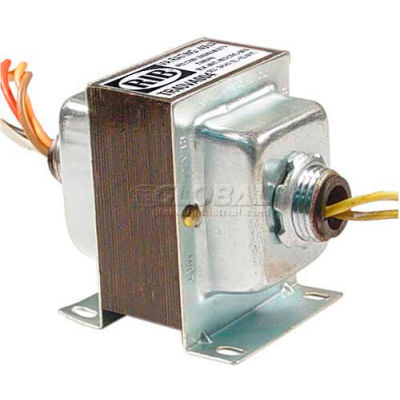

RIB® Transformer TR40VA004, 40VA, 277/240/208/120-24V, Dual Hub, Foot Mount
Transformers ranging from 20VA to 375VA are foot and/or hub mounted. They are available with single or dual threaded hubs. Some are foot mounted only. Most are UL Listed or UL Component Recognized, and many are Class 2. Several transformers are provided with a circuit breaker. Pigtail wires are standard on all models and are up to 9.5" in length. All transformers utilize split-bobbin construction.
Transformers ranging from 20VA to 375VA are foot and/or hub mounted. They are available with single or dual threaded hubs. Some are foot mounted only. Most are UL Listed or UL Component Recognized, and many are Class 2. Several transformers are provided with a circuit breaker. Pigtail wires are standard on all models and are up to 9.5" in length. All transformers utilize split-bobbin construction.
Product Specifications
- OPERATING TEMPERATURE-30° To 140°F
- MANUFACTURERS PART NUMBERTR40VA004
- BRANDRIB®
- CERTIFICATIONSClass 2 UL5085-3 Listed, cUL, CE, RoHS
- VOLTAGE277/240/208/120-24
- WARRANTY YEARS1
- DESCRIPTIONTransformer
- HEIGHT INCHES2.875
- WIDTH INCHES2.2
- WIRE RATING600V
- WIRE SIZE8" Typical With .5" Strip
- AMPS40
- LENGTH INCHES2.7
- HUMIDITY RANGE36 To 95 Percent (Noncondensing)
- HUB STYLEDual
Customer Review
Product Q & A
There are no questions for this product.
Popular item in this category
RIB® Transformer TR40VA022, 40VA, 120-24V, Dual Hub, Foot Mount
Item #: B1034659
Not Yet Rated
Usually ships in 3 to 6 days
$12.75
RIB® Transformer TR40VA004, 40VA, 277/240/208/120-24V, Dual Hub, Foot Mount
$14.0
