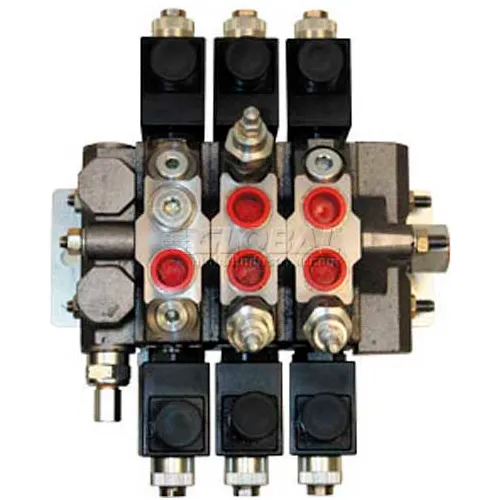

Buyers Electrically Operated Sectional Valves, HVE34PR3PR3PRPB, 3 Way w/ PR, 4 Way w/2 PR, PB

All valves are: 12 VOLT, 2.4 Amps Rated to 11 GPM (NON PROPORTIONAL) All ports are #8 SAE Straight thread Valve rated to 4300 PSI with higher pressure main relief (non standard) Main relief 1300-3000 PSI; Set at 2150 PSI Port relief angle 1900-4300 PSI;Set at 2150 PSI Port relief dump 400-1900 PSI;Set at 600 PSI All valves have cylinder spools unless specified as motor.

Pilot operated Also available 1/2" NPTF Working pressure 3625 PSI / 250 BAR Maximum pressure 4422 PSI / 315 BAR Cracking pressure 72.5 PSI / 5 BAR Used to convert latch pin plow applications to power angle plow

Have a screwed bonnet, non-rising stem, solid wedge disc, and integral seats Recommended for non-steam use in residential and light commercial applications May be repacked while in service under pressure 200 PSI W.O.G. Non-shock

Hydraulic spreader valve console only, for use with HV715 and HV1030.

Single or Dual flow regulator with built-in on-off control plus system relief and pressure compensated Built-in differential style relief valve and on-off valve in a single compact body Permits easy installation with min. plumbing Detent hand knob for each flow control Easy to adjust flow, 11 positive positions Aluminum body All ports are 3/4" NPT, except 1/2" NPT spinner port Relief cartridge std. setting 1500 PSI (105 bar)
