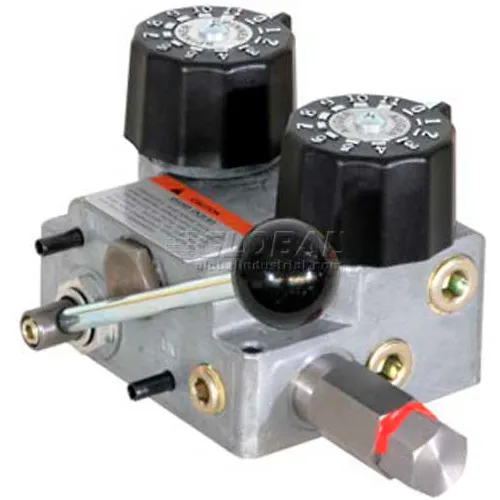

Buyers Hydraulic Spreader Valve, HV1030, Valve Only, 10/30 GPM, 155 LPM, 2000 PSI, 140 BAR

All valves are: 12 VOLT, 2.4 Amps Rated to 11 GPM (NON PROPORTIONAL) All ports are #8 SAE Straight thread Valve rated to 4300 PSI with higher pressure main relief (non standard) Main relief 1300-3000 PSI; Set at 2150 PSI Port relief angle 1900-4300 PSI;Set at 2150 PSI Port relief dump 400-1900 PSI;Set at 600 PSI All valves have cylinder spools unless specified as motor.

Single or Dual flow regulator with built-in on-off control plus system relief and pressure compensated Built-in differential style relief valve and on-off valve in a single compact body Permits easy installation with min. plumbing Detent hand knob for each flow control Easy to adjust flow, 11 positive positions Aluminum body All ports are 3/4" NPT, except 1/2" NPT spinner port Relief cartridge std. setting 1500 PSI (105 bar)

All valves are: 12 VOLT, 2.4 Amps Rated to 11 GPM (NON PROPORTIONAL) All ports are #8 SAE Straight thread Valve rated to 4300 PSI with higher pressure main relief (non standard) Main relief 1300-3000 PSI; Set at 2150 PSI Port relief angle 1900-4300 PSI;Set at 2150 PSI Port relief dump 400-1900 PSI;Set at 600 PSI All valves have cylinder spools unless specified as motor.

Have a screwed bonnet, non-rising stem, solid wedge disc, and integral seats Recommended for non-steam use in residential and light commercial applications May be repacked while in service under pressure 200 PSI W.O.G. Non-shock

Hydraulic spreader valve console only, for use with HV715 and HV1030.
