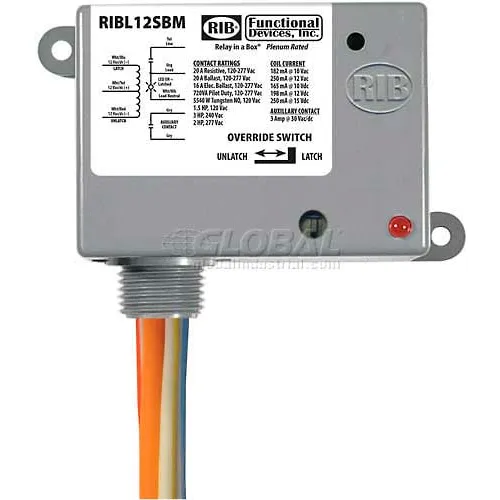

RIB® Enclosed Latching Relay RIBL12SBM, 20A, 12VAC/DC, W/switch & Aux Contact
The Latching Series comes prepackaged in their own NEMA 1 plastic enclosure with a 1/2" mounting nipple, LED indicator and pre-wired for a money-saving installation that is easy and quick. These relays are activated by pulse commands from a controller or momentary switch closure. The relay contacts are mechanically latched in the closed position and the load will remain on in the event of a control panel failure period. If power is completely lost the contacts will remain in their last state and the load will activate upon the return of normal power or emergency power.
The Latching Series comes prepackaged in their own NEMA 1 plastic enclosure with a 1/2" mounting nipple, LED indicator and pre-wired for a money-saving installation that is easy and quick. These relays are activated by pulse commands from a controller or momentary switch closure. The relay contacts are mechanically latched in the closed position and the load will remain on in the event of a control panel failure period. If power is completely lost the contacts will remain in their last state and the load will activate upon the return of normal power or emergency power.
Weights & Dimensions
- Width 3.2 in
- Length 2.3 in
- Height 1.8 in
- Wire Size 16 in
Product Details
- Operating Temperature -30° To 140°F
- Humidity Range 5 To 95 Percent (Noncondensing)
- Voltage 12VAC/DC V
- Expected Relay Life 10 Million Cycles Minimum Mechanical
- Description Enclosed Latching Relay W/Switch & Aux Contact
- Number of Relays 1
- Amperage 20 A
- Wire Rating 600V
- Brand RIB
- Manufacturers Part Number RIBL12SBM
- Contact Type SPST
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications UL Listed
