Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.

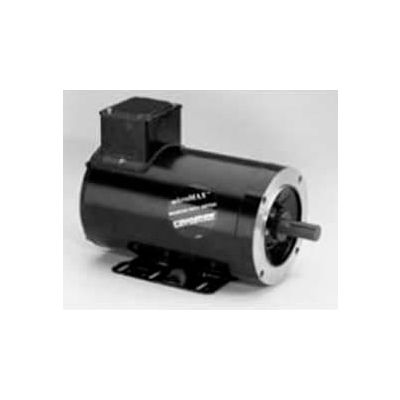

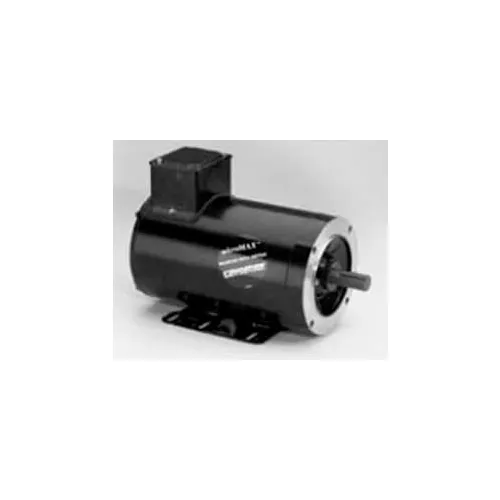

Marathon Motors Explosion Proof Motor, C322A, 2HP, 208-230/460V, 1800RPM, 3PH, EPFC
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$1,099.00
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 76 lbs |
| Opposite End Bearing Size | Ball |
| Drive End Bearing Size | 6205 |
Product Details
| 60 Hertz kW | 1.492 kW |
| 50 Hertz Horsepower | 1.5 HP |
| 50 Hertz SF | 1.15 |
| KVA Code | K |
| Motor RPM 50 Hertz | 1500 rpm |
| IP Code | 54 |
| 60 Hertz RPM | 1800 rpm |
| Motor RPM 60 Hertz | 1800 rpm |
| 50 Hertz Voltage | 190/380 V |
| 50 Hertz FLE | 82.5 FLE |
| 50 Hertz RPM | 1500 rpm |
| Mounting Location | C-Face Footless |
| Phase | 3 |
| Manufacturers Part Number | C322A |
| Enclosure | EPFC |
| 50 Hertz Full Load Amps | 5.2/2.6 FLA |
| Service Factor | 1.15 |
| Bearing Drive End | 205 |
| Brand | Marathon Motors |
| 50 Hertz Kilowatts | 1.12 kW |
| RPM | 1800 rpm |
| Hazardous Location | EXP PROOF CL I GR D CL II GR F&G T3B |
| Insulation Class | F |
| Horsepower | 2 HP |
| Orientation | Horizontal |
| Frame | 145TC |
| Hertz | 60/50 Hz |
| Starting Type | Across the Line |
| Thermal Protection | Not Thermostats (Normally Closed) |
| Enclosure Type | Explosion Proof |
| Voltage | 208-230/460 V |
| Full Load Efficiency | 84 |
| Full Load Amps | 6-5.6/2.8 FLA |
| Duty | Continuous |
| Ambient Temperature | 40 °C |
| RPM Range | 1701-1800 rpm |
Compliance & Certifications
| CSA Certified | N |
| CE Approved | N |
| NEMA Design | B |
| UL | UL Listed |
