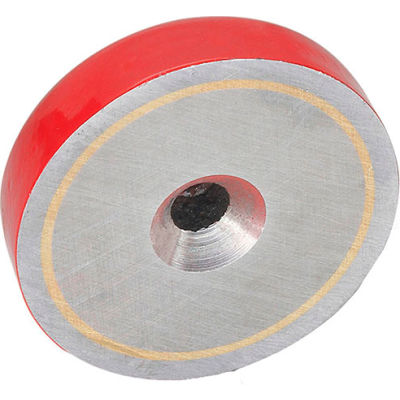

J.W. Winco 58-AN-38 Pot Magnet Assembly w/ Thru Hole - 1.50" Diameter, Steel
Item #: WBB2157536
Not Yet Rated
Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.
Enter zip code for delivery date estimate
Shipping to 10465 change
- SELECT
- 0.75
- 1.14
- 1.5
1.5
- SELECT
- 0.15
- 0.19
0.19
Customers Also Viewed
J.W. Winco 58-AN-29 Pot Magnet Assembly w/ Thru Hole - 1.14" Diameter, Steel
Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.
Master Magnetics Neodymium Swiveling Magnetic Hook 07580 - 65 Lbs. Pull Black Powdered Coat
Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.
Retaining Magnet Assembly w/ Threaded Stud and Rubber Jacket - .87" Dia. Zinc Plated Steel
Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.
Retaining Magnet Assembly w/ Threaded Stud and Rubber Jacket - 2.60" Dia. Zinc Plated Steel
Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.
Retaining Magnet Assembly w/ Threaded Bushing - 2.48" Dia. Stainless Steel
Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.
GN 58 magnets are a shielded magnetic assembly. To ensure that the magnetic forces are not impaired, the mounting screws must be made of non-magnetic material. For easier handling and/or to avoid demagnetization, these magnets have an iron plate on their magnetic surface. Temperature resistant to 535 °F (280°C), Red lacquer temperature resistant to 355 °F (180°C).
Product Specifications
- NOMINAL PULLING FORCE130 N
- BRANDJ.W. Winco
- MAGNET CONTRUCTIONAluminum, nickel and Cobalt Combination AlNiCo (AN type)
- DIAMETER INCHES1.5
- TYPEWith Thru Hole
- THRU HOLE INCHES (D2)0.19
- CONSTRUCTIONSteel - Red Lacquered Finish
- BODY THICKNESS INCHES (H)0.41
- COUNTERSUNK SCREW HEAD DIAMETER INCHES (D3)0.39
There are no questions for this product.
J.W. Winco 58-AN-38 Pot Magnet Assembly w/ Thru Hole - 1.50" Diameter, Steel
$20.0
