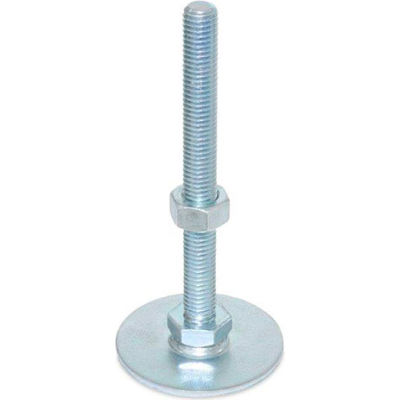

Leveling Foot - Threaded - 1800 Lbs. Capacity - 50mm Base Dia. - J.W. Winco 40-50-M12-125-A0-SK
GN40 Leveling feet are simple, economically priced components. The static load rating of these feet is limited due to the acceptable load rating of the stud (tensile strength 500/mm²). The values given in the table assume a straight compressive load, perpendicular to the foot. The bending and buckling stress factors often found in the actual application reduce the load rating of the stud, and must be compensated for accordingly. To insure proper leveling mount size, divide the machine weight by the number of feet required. This will equal the pounds or load per leveling foot.
GN40 Leveling feet are simple, economically priced components. The static load rating of these feet is limited due to the acceptable load rating of the stud (tensile strength 500/mm²). The values given in the table assume a straight compressive load, perpendicular to the foot. The bending and buckling stress factors often found in the actual application reduce the load rating of the stud, and must be compensated for accordingly. To insure proper leveling mount size, divide the machine weight by the number of feet required. This will equal the pounds or load per leveling foot.
Product Specifications
- BASE DIAMETER50mm
- BASE HEIGHT2.5mm
- BRANDJ.W. Winco
- CONSTRUCTIONSteel
- DESCRIPTIONLeveling Foot
- MANUFACTURERS PART NUMBER40-50-M12-125-A0-SK
- TYPEThreaded
- THREADED STUD & HEX NUTZinc Plated Steel w/ Blue Passivated Finish
- UNIT OF MEASUREMENTMetric
- LOAD CAPACITY RANGE (LBS.)1000 - 2500 Lbs.
- LOAD CAPACITY (LBS.)1800 Lbs.
- THREADM12
- SERIESGN40
- COUNTRY OF ORIGINImport
- STUD LENGTH125mm
