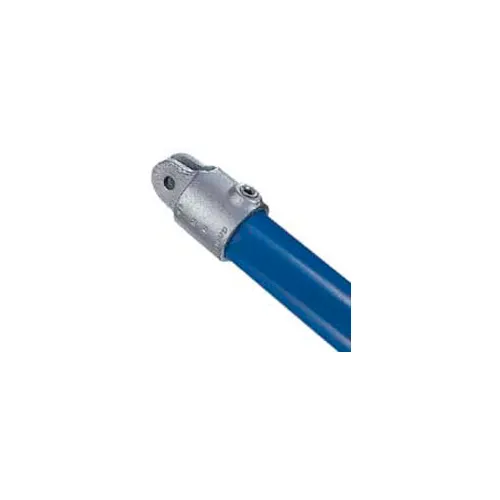

Kee Safety - F50-6 - Female Single Swivel Socket Member, 1" Dia.

Kee Klamp® Fittings Set Screws Socket set screws are supplied in all Kee Klamp fittings as standard. Kee Koat, applied as standard throughout the Kee Klamp range, provides the set screws with almost the same level of corrosion resistance as the galvanized Kee Klamp fitting.

Kee Klamp® Fittings Swivel Flange A swivel fitting for attachment of angled pipe to a flat surface. For dimensions refer to Type F50 and Type M58. PA Warning: It is not recommended for use as a base flange to support guardrailing, balustrading or other types of structure.

Kee Klamp® Fittings Single Socket Tee Designed to give a 90° butt joint between two pipes. Frequently used for the joint between end uprights and the middle rail on safety railing where the site is straight and level. Also for base ties on racking. This fitting cannot be used where the pipe through sleeve 'A' is required to be joined within the fitting. Type 25 should be used when a join in the pipe is necessary.

KEE KLAMP® FITTINGS RAILING STANDARD FLANGE Ideal when a structural fixing is required. When fixing guardrailing and balustrades, Type 62 should always be used. The holes are of sufficient diameter to insure proper fixing with either a mechanical or chemical anchor. The two set screws in the vertical socket give greater sideload stability to the upright. It is recommended that the fixing holes in the flange should be in line with the applied load. 9/16" diameter fixing holes.

Kee Klamp® Fittings Standard Vertical Railing Base This fitting is designed for fixing guardrailing and balustrading to walls, parapets, steps and ramps. The upright cannot drop through the socket. Access to the top fixing hole is restricted by the position of the flange to the barrel. When selecting a hexagon head bolt or similar bolt fixing, the maximum length of the bolt including the head must not exceed 1".
