For use on pumps designed for fire pump duty and installed per NFPA-20. These Dripproof motors are intended for installation in relatively clean and dry environments. Fire Pumps motors are not recommended for use with variable frequency drives.

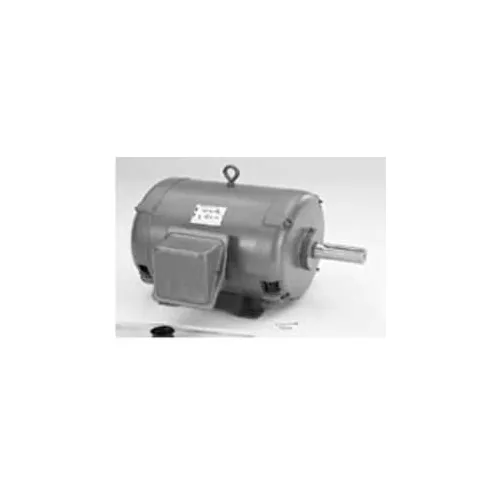

Marathon Motors Fire Pump Motor, U526, 100HP, 230/460V, 3600RPM, 3PH, 365TS FR, DP
|
Questions & Answers (0)
Product Description
PRICE
$9,099.00
1
1
Free Shipping Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 721 lbs |
| Opposite End Bearing Size | 6312 |
| Dimension C | 27-1/2 in |
| Drive End Bearing Size | 6312 |
Product Details
| 60 Hertz kW | 75 kW |
| 50 Hertz Horsepower | 75 HP |
| 50 Hertz SF | 1.15 |
| KVA Code | F |
| Motor RPM 50 Hertz | 3000 rpm |
| IP Code | 12 |
| 60 Hertz RPM | 3600 rpm |
| Motor RPM 60 Hertz | 3600 rpm |
| 50 Hertz Voltage | 190/380 V |
| 50 Hertz FLE | 91.70 Percent FLE |
| Mounting Location | Rigid |
| Phase | 3 |
| Manufacturers Part Number | U526 |
| Enclosure | DP |
| 50 Hertz Full Load Amps | 216/108 FLA |
| Service Factor | 1.15 |
| Bearing Drive End | 6312 |
| Brand | Marathon Motors |
| 50 Hertz Kilowatts | 56 kW |
| RPM | 3,600, 3,000 rpm |
| Insulation Class | B |
| Horsepower | 100 HP |
| Orientation | Horizontal |
| Frame | 365TS |
| Starting Type | WYE Start Delta Run |
| Enclosure Type | Open/Drip Proof |
| Voltage | 230, 460 V |
| Full Load Efficiency | 93 |
| Full Load Amps | 240/120 FLA |
| Duty | Continuous |
| Ambient Temperature | 50 °C |
| RPM Range | 3001-3600 rpm |
Compliance & Certifications
| CSA Certified | Y |
| CE Approved | Y |
| NEMA Design | B |
| UL | UL Listed |
