Marathon Motors, G359, 056C34F5310, 1HP, 3600RPM, 115/208-230V, 1PH, 56 FR, TEFC

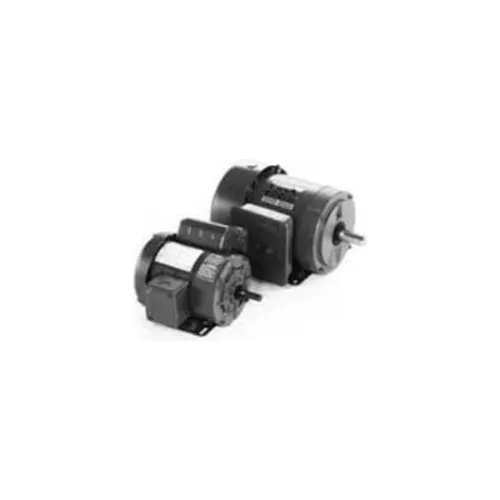

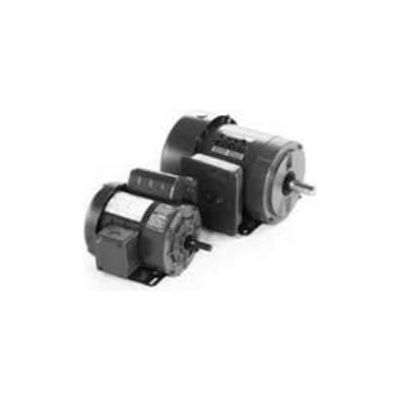

Actual product may differ from image shown

Marathon Motors, G359, 056C34F5310, 1HP, 3600RPM, 115/208-230V, 1PH, 56 FR, TEFC

Item #: WBB870387

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $426.95

Save $21.35 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

US Motors, ODP, 1/3 HP, 1-Phase, 1725 RPM Motor, D13B2N4Z

US Motors, ODP, 1/3 HP, 1-Phase, 1725 RPM Motor, D13B2N4Z

Baldor-Reliance Motor VL3507, .75HP, 1725RPM, 1PH, 60HZ, 56C, 3428LC, TEFC, F

Baldor-Reliance Motor VL3507, .75HP, 1725RPM, 1PH, 60HZ, 56C, 3428LC, TEFC, F

Baldor-Reliance Motor CL3503, .5HP, 3450RPM, 1PH, 60HZ, 56C, 3413L, TEFC, F1

Baldor-Reliance Motor CL3503, .5HP, 3450RPM, 1PH, 60HZ, 56C, 3413L, TEFC, F1

Marathon Motors, G359, 056C34F5310, 1HP, 3600RPM, 115/208-230V, 1PH, 56 FR, TEFC

Marathon's Single Phase extensive line of General Purpose motors are available in ODP and TEFC construction, Foot Mounted and Footless. Horsepower sizes available from stock range from 1/12 HP through 15 HP.

Weights & Dimensions

  • Drive End Bearing Size 6203
  • Opposite End Bearing Size 6203
  • Weight 30

Product Details

  • Voltage 115/208-230 V
  • Frame 56
  • Service Factor 1.15
  • Horsepower 1 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Duty Continuous
  • Phase 1
  • Enclosure TEFC
  • Orientation Horizontal
  • Starting Type Cap Start Ind Run
  • Brand Marathon Motors
  • Full Load Amps 12.4/6.7-6.2 FLA
  • Motor RPM 60 Hertz 3600 rpm
  • Manufacturers Part Number G359
  • 60 Hertz kW 0.75 kW
  • Mounting Location Rigid
  • Assembly Required F1 ONLY
  • Bearing Drive End 6203
  • Rotation CCW °
  • Ambient Temperature 40 °C
  • Nameplate RPM 3600 rpm
  • KVA Code K
  • IP Code 43
  • Insulation Class B
  • RPM Range 3001-3600 rpm
  • Bearing Opp Drive End 6203

Compliance & Certifications

  • NEMA Design N
  • CSA Certified Y
  • UL Recognized Construction
