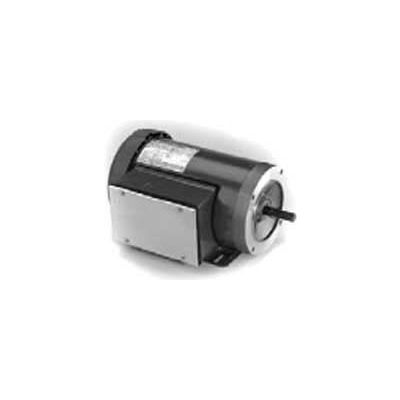

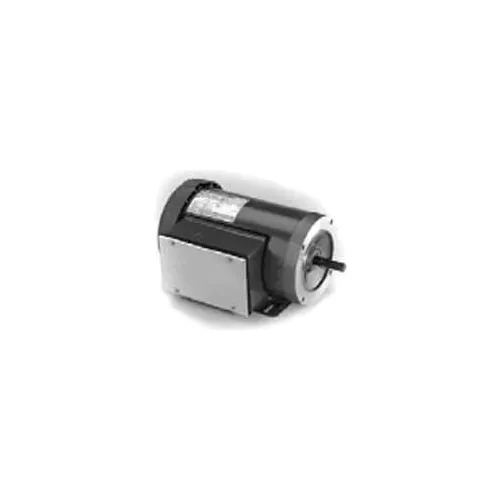

Marathon Motors, G576, 056C11F5303, 1/3HP, 1200RPM, 115/208-230V, 1PH, 56C FR, TEFC
Marathon's Single Phase extensive line of General Purpose motors are available in ODP and TEFC construction, Foot Mounted and Footless. Horsepower sizes available from stock range from 1/12 HP through 15 HP.
Marathon's Single Phase extensive line of General Purpose motors are available in ODP and TEFC construction, Foot Mounted and Footless. Horsepower sizes available from stock range from 1/12 HP through 15 HP.
- HORSEPOWER 1/3
- ENCLOSURE TEFC
- FRAME 56C
- MOUNTING C-Face Removable Base
- NAMEPLATE RPM 1200
- PHASE 1
- MOTOR RPM 60Hz 1200
- VOLTAGE 115/208-230
- DUTY Continuous
- SERVICE FACTOR 1.15
- AMBIENT TEMP C 40
- ROTATION CCW
- WEIGHT 29
- UL Recognized Construction
- CSA Y
- RPM RANGE 1101-1200
- ENCLOSURE TYPE Totally Enclosed
- IP CODE 43
- is_motor Yes
- ORIENTATION Horizontal
- MANUFACTURER PART # G576
- BRAND Marathon Motors
- STARTING TYPE Cap Start Ind Run
- OPPOSITE END BEARING SIZE 6203
- DRIVE END BEARING SIZE 6203
- NEMA DESIGN N
- APPROVAL-CE Y
- ASSEMBLY F1 ONLY
- KVA-CODE N
- FL AMPS 7.8/3.6-3.9
- INSULATION CLASS B
- FL EFFICIENCY 52.5
- BEARING-OPP-DRIVE-END 6203
- BEARING-DRIVE-END 6203
- 60 HERTZ kW 0.25
- MODEL NUMBER 056C11F5303
Customer Review
Product Q & A
There are no questions for this product.
Marathon Motors, G576, 056C11F5303, 1/3HP, 1200RPM, 115/208-230V, 1PH, 56C FR, TEFC
$355.95
