JET

Model # :WBB3253564

MPN #: JT1-2714

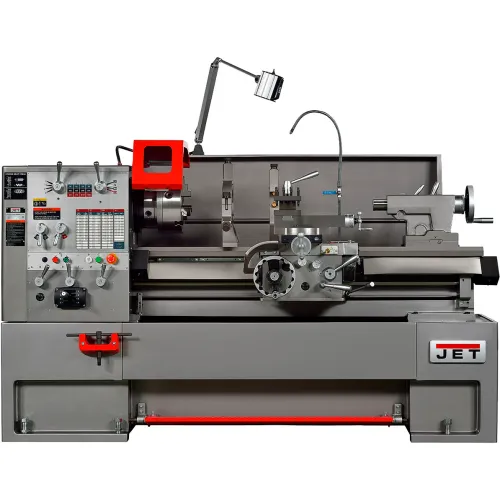

JET® GH-1860ZX Large Spindle Bore Gear Head Lathe, 230V

Product Description
The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency, and reliability to your metal shop. A one-piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy. This lathe also features a 9" three jaw scroll chuck with top reversing jaws, and an e-stop on the carriage for increased operator safety. Features you've come to expect in a JET® Lathe that is backed by the industry-leading JET® Two Year Warranty.

PRICE
$41,719.00

1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length114-3/16
Width45-1/2 in
Height74-13/16 in
Weight4850 lbs
Distance Between Centers60 in
Spindle Bore3-1/8 in
Swing Over Bed18 in
Swing Through Gap25-5/8 in
Swing Over Cross Slide12 in
Cross Slide Travel11-13/16 in

Product Details

Spindle MountD1-8
Style TypeEngine Lathe
StyleLarge Spindle Bore
Motor Voltage230 V
Phase3
Manufacturers Part NumberJT1-2714
PrewiredYes
Motor Horsepower10 HP
Collet CloserNo
Taper AttachmentNo
BrandJET

Warranty

Warranty2 yr
