Features:

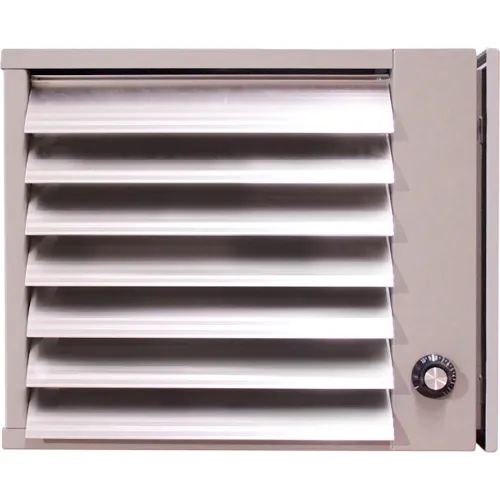

- Heavy Duty Forced Air Unit Heater c/w T'stat -600V 3Ø 15kW
- Heating Capability (Sq./ft.): Depends on Conditions - Consult Factory
- Electric Fuel Type
- Hardwired
- Indoor Use
- Blower Included
- CSA approved for horizontal and vertical air flow
- Automatic reset high-limit
- 15, 20, 25, 30, 40, 50 kW units
- 40 and 50 kW units incorporate split loads (50%) for remotely controlled energy management systems
- Factory-installed transformers, contactors, and thermostats where specified
- Individually adjustable louvres
- Factory-balanced aluminum fan blade
- Fan delay in ON and OFF cycles
- Full sized control panel with hinged removable door, constructed to EEMAC 12 standards
- Continuous fan terminals for connection to remote switch 14-gauge steel cabinet
- Epoxy painted (ASA61 Grey) for superior resistance to corrosion
- 1/3 HP motor with sealed ball bearings and totally enclosed construction
- Ceiling mounting bracket supplied
- Motor mounted outside of the element bundle eliminating premature failure due to overheating and providing easy access for motor maintenance
- Elements are robust Caloritech™ type KX finned tubular sheathed type with epoxy sealed terminals to eliminate contamination from moisture and airborne impurities
- Built-in thermostat 41°F to 100°F (5°C to 38°C)
- Disconnect switch with door interlock
- HRC main load fuses
- Fused control circuit
- Manual reset high limit
- Continuous fan switch
- Low voltage relay for remote 24V thermostat
- Epoxy painted fan blade and motor
- Special wattages and voltages
- Special control voltages (standard is 240V)
- Available in special finishes
- Split load feature: 15, 20, 25, 30 kW units
- Nickel plated elements
- Alloy elements with brazed alloy fins
- EEMAC 4 construction
- Stainless steel cabinet
- Energy Management Controller
- Mine shafts
- Pulp and paper mills
- Hoist houses
- Welding shops
- Maintenance shops
- Sewage treatment plants
- Chemical plants
- Repair shops
- Wash down areas
- Weigh scale pits
- Elevator shafts
- High humidity areas
- 40°-100°F (5°-40°C)
