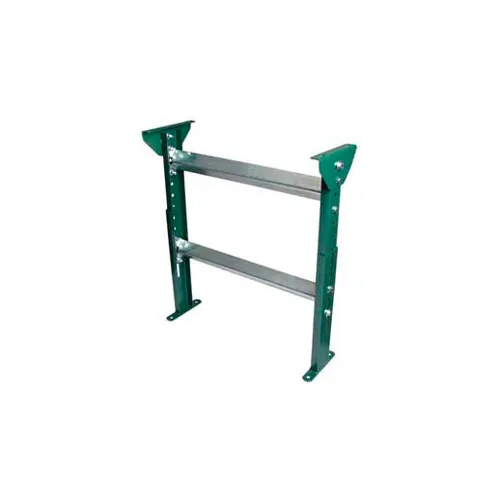

H-Stand Support 36347 for Ashland 30" OAW Skatewheel Conveyor - Adj. 31" to 43"H

Gravity skatewheel conveyor will convey lightweight loads that have firm flat conveying surfaces such as cartons, totes, cases etc. Benefits and features of skatewheel conveyor include; It is lighter weight than roller conveyor making it ideal for quick temporary set-ups. Includes quick connecting hook and rod couplers. Skatewheels roll freely making them better suited for conveying lighter packages. Aluminum conveyors are lighter in weight for easier handling. Galvanized steel conveyors are heavier and more durable. 1-15/16"Dia., Pre-lubricated zinc plated steel wheels Construction: 1" x ...

The Model CDLR16F chain driven live roller conveyor is constructed of an 8 ga steel channel frame and 2-1/2"x11 ga steel rollers on 5" centers. Each roller is positively driven. Each drive is powered by a 1 HP motor and operates at 30 FPM. Non-drive slave units can be added to provide a desired overall length. Capacity is affected by the total length of the system. Generally a drive will support slaves up to a total length of 50' with a maximum live load of 7,000 Lbs. At 30' the maximum live load is 15,000 Lbs. The per foot maximum live load is 800 Lbs. using supports on 5' centers. The ...

Tripod supports are used for quick temporary light duty applications and can be used with skatewheel conveyors and 1-3/8" roller conveyor with 2-1/2" frame channel (11F frames) conveyors. The T-bar is 12-½" to fit a 13" BF (Between the Frame) of the conveyor. They are easily adjustable and very portable.

The Model CDLR17F chain driven live roller conveyor is constructed of an 8 ga steel channel frame and 1.9"x9 ga steel rollers on 4" centers. Each roller is positively driven. Each drive is powered by a 1 HP motor and operates at 30 FPM. Non-drive slave units can be added to provide a desired overall length. Capacity is affected by the total length of the system. Generally a drive will support slaves up to a total length of 50' with a maximum live load of 7,000 Lbs. At 30' the maximum live load is 15,000 Lbs. The per foot maximum live load is 700 Lbs. using supports on 5' centers. The ...

The medium duty 4BH30 support has a 3000 Lb. capacity. These supports may be used with 21" BF (Between the Frame) gravity roller conveyor (4" frames). The 4BH stand is used for permanent, as opposed to portable conveyor installations. Heights listed are to the top of support. Supports ship unassembled.
