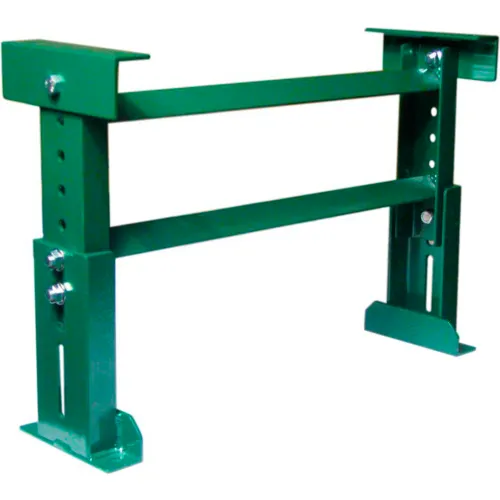

H-Stand Support 34657 for Ashland 51" BF Roller Conveyors - Adj. 17" to 27-1/4"H

Gravity skatewheel conveyor will convey lightweight loads that have firm flat conveying surfaces such as cartons, totes, cases etc. Benefits and features of skatewheel conveyor include; It is lighter weight than roller conveyor making it ideal for quick temporary set-ups. Includes quick connecting hook and rod couplers. Skatewheels roll freely making them better suited for conveying lighter packages. Aluminum conveyors are lighter in weight for easier handling. Galvanized steel conveyors are heavier and more durable. 1-15/16"Dia., Pre-lubricated zinc plated steel wheels Construction: 1" x ...

The H15 or 1500 Lbs. Capacity H-stand support may be used with 16" BF (Between the Frame) gravity skatewheel, gravity roller (2-1/2" and 3-1/2" frames), and powered belt conveyor. The H-stand is used for permanent, as opposed to portable conveyor installations. Heights listed are to the top of support. Supports ship unassembled.

The Model CDLR16F chain driven live roller conveyor is constructed of an 8 ga steel channel frame and 2-1/2"x11 ga steel rollers on 5" centers. Each roller is positively driven. Each drive is powered by a 1 HP motor and operates at 30 FPM. Non-drive slave units can be added to provide a desired overall length. Capacity is affected by the total length of the system. Generally a drive will support slaves up to a total length of 50' with a maximum live load of 7,000 Lbs. At 30' the maximum live load is 15,000 Lbs. The per foot maximum live load is 800 Lbs. using supports on 5' centers. The ...

The Model FR2 flow rail is constructed of 2-1/4"x3" galvanized J channel. The wheels are 1-15/16" diameter and 13/16" wide.

The H15 or 1500 Lbs. Capacity H-stand support may be used with 28" BF (Between the Frame) gravity skatewheel (2-1/2" frames). The H-stand is used for permanent, as opposed to portable conveyor installations. Heights listed are to the top of support. Supports ship unassembled.
