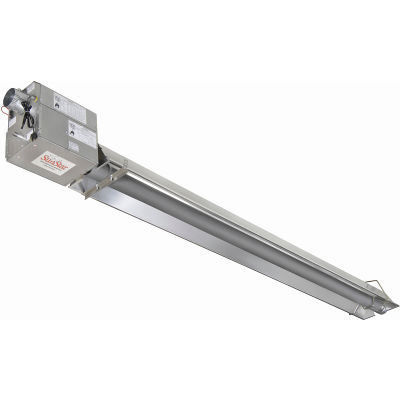

SunStar Propane Infrared Heater Straight Tube Positive Pressure - SPS50-30-L5 - 50000 BTU

Video - Click to Play
See all 164 items in product family

SunStar Propane Infrared Heater Straight Tube Positive Pressure - SPS50-30-L5 - 50000 BTU

Print

Item #: WBB59778

Sold By: globalindustrial.com

Usually ships in 10 to 13 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

Price: $ 919.00
Add to list

Customers Who Viewed This Also Viewed

Product Information
Warranty
Customer Review
Product Q&A
Accessories
Offers fuel savings up to 50%.

Straight Tube heaters ideal for complete building heating. Positive pressure system pressurizes the combustion chamber. All gas and electrical connection at the same end of the heater. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 40' of ducting in fresh air or 40' sidewall venting capability. Blower is located inside the burner box. Ideal for applications where minimal noise ( less than 60dB) is desired. Heavy duty permanently lubricated and ball bearing blower motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. External 24V thermostat connection or line voltage operation. The minimum mounting heights are shown for human comfort and uniform energy distribution for complete building applications. Mount heaters as high as possible. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA.

To help pick out the heater that’s right for you, click here to view the Heat Loss Estimating Chart.

Documents
Specifications
Documents
MANUAL

Documents are in PDF format

Product Specifications

    • BRANDSunStar®
    • LENGTH FEET32
    • WIDTH INCHES13
    • HEIGHT INCHES6-1/4
    • DUCT SIZE INCHES4
    • TUBE LENGTH FEET30
    • MIN. CLEARANCE COMBUSTIBLE AT 45 DEGREE ANGLE INCHFront 48, Rear 12, Ceiling 6, Below 40, End 30
    • MIN. CLEARANCE COMBUSTIBLES AT HORIZONTAL INCHSide 27, Ceiling 6, Below 40, End 30
    • MIN. MOUNTING HEIGHT FEET AT 45 DEGREE ANGLE10
    • MIN. MOUNTING HEIGHT FEET AT HORIZONTAL11
    • WEIGHT LBS132.8
    • CONSTRUCTIONCast Iron Burner / Aluminum Reflectors
    • TUBE CONSTRUCTIONHot Rolled Steel
    • BTU HIGH50000
    • BURNER PRESSURE W.C. INCHES10
    • GAS INLET PRESSURE MAX. WATER COLUMN INCHES14
    • GAS INLET PRESSURE MIN. WATER COLUMN INCHES11
    • SHAPEStraight
    • FUEL TYPEPropane Gas
    • IGNITION TYPEDirect Spark
    • DESCRIPTIONStandard
    • TYPEPositive Pressure
    • LIMITED WARRANTY YEARS1
    • MANUFACTURER'S PART NUMBERSPS50-30-L5
